TN3015H-6G-TR - TN4050HP-12G2YTR

TN3015H-6G-TR

Active
STMicroelectronics

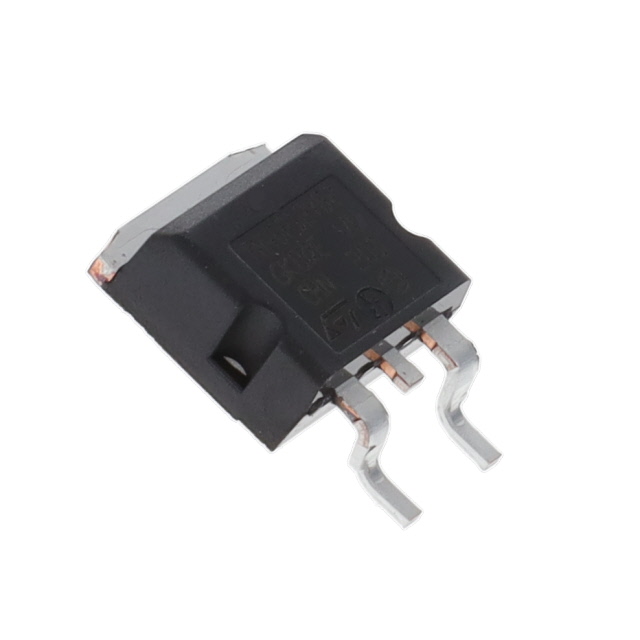

30 A 600 V D2PAK HIGH TEMPERATURE THYRISTOR SCR

Deep-Dive with AI

Search across all available documentation for this part.

Documents+15
TN3015H-6G-TR - TN4050HP-12G2YTR

TN3015H-6G-TR

Active
STMicroelectronics

30 A 600 V D2PAK HIGH TEMPERATURE THYRISTOR SCR

Deep-Dive with AI

Documents+15

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationTN3015H-6G-TRTN3015 Series
--
Current - Gate Trigger (Igt) (Max) [Max]15 mA15 mA
Current - Hold (Ih) (Max) [Max]60 mA60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]295 A295 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]270 A270 A
Current - Off State (Max) [Max]10 µA10 µA
Current - On State (It (AV)) (Max)19 A19 A
Current - On State (It (RMS)) (Max) [Max]30 A30 A
Mounting TypeSurface MountSurface Mount, Through Hole
Operating Temperature [Max]150 °C150 °C
Operating Temperature [Min]-40 °C-40 °C
Package / CaseD2PAK (2 Leads + Tab), TO-263AB, TO-263-3D2PAK (2 Leads + Tab), TO-263AB, TO-263-3, TO-220-3
SCR TypeStandard RecoveryStandard Recovery
Supplier Device PackageD2PAKD2PAK, TO-220, TO-220AB Insulated
Voltage - Gate Trigger (Vgt) (Max) [Max]1.3 V1.3 V
Voltage - Off State600 V600 V
Voltage - On State (Vtm) (Max) [Max]1.6 V1.6 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTape & Reel (TR) 2000$ 0.60
6000$ 0.57
10000$ 0.54

TN3015 Series

30 A 600 V D2PAK High Temperature Thyristor SCR

PartVoltage - Gate Trigger (Vgt) (Max) [Max]Current - Gate Trigger (Igt) (Max) [Max]Operating Temperature [Max]Operating Temperature [Min]Voltage - Off StateSCR TypeCurrent - On State (It (RMS)) (Max) [Max]Supplier Device PackageCurrent - Non Rep. Surge 50, 60Hz (Itsm) [Min]Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]Current - On State (It (AV)) (Max)Package / CaseVoltage - On State (Vtm) (Max) [Max]Current - Off State (Max) [Max]Mounting TypeCurrent - Hold (Ih) (Max) [Max]
STMicroelectronics
TN3015H-6I
STMicroelectronics
TN3015H-6G-TR
1.3 V
15 mA
150 °C
-40 °C
600 V
Standard Recovery
30 A
D2PAK
270 A
295 A
19 A
D2PAK (2 Leads + Tab), TO-263-3, TO-263AB
1.6 V
10 µA
Surface Mount
60 mA
STMicroelectronics
TN3015H-6G-TR
STMicroelectronics
TN3015H-6T
STMicroelectronics
TN3015H-6I
STMicroelectronics
TN3015H-6G
STMicroelectronics
TN3015H-6G
1.3 V
15 mA
150 °C
-40 °C
600 V
Standard Recovery
30 A
D2PAK
270 A
295 A
19 A
D2PAK (2 Leads + Tab), TO-263-3, TO-263AB
1.6 V
10 µA
Surface Mount
60 mA
STMicroelectronics
TN3015H-6G
STMicroelectronics
TN3015H-6T
1.3 V
15 mA
150 °C
-40 °C
600 V
Standard Recovery
30 A
TO-220
270 A
295 A
19 A
TO-220-3
1.6 V
10 µA
Through Hole
60 mA
STMicroelectronics
TN3015H-6I
1.3 V
15 mA
150 °C
-40 °C
600 V
Standard Recovery
30 A
TO-220AB Insulated
270 A
295 A
19 A
TO-220-3
1.6 V
10 µA
Through Hole
60 mA

Description

General part information

TN3015 Series

Thanks to its operating junction temperature up to 150°C, the TN3015H-6G SCR in D2PAK package offers high thermal performance operation up to 30 A RMS in a compact SMD design.

Its trade-off noise immunity (dV/dt = 1000 V/μs) versus its gate triggering current (IGT= 15 mA) and its turn-on current rise (dI/dt = 100 A/μs) allows to design robust and compact control circuit for voltage regulator in motorbikes and industrial drives, overvoltage crowbar protection, motor control circuits in power tools and kitchen appliances and inrush current limiting circuits.
