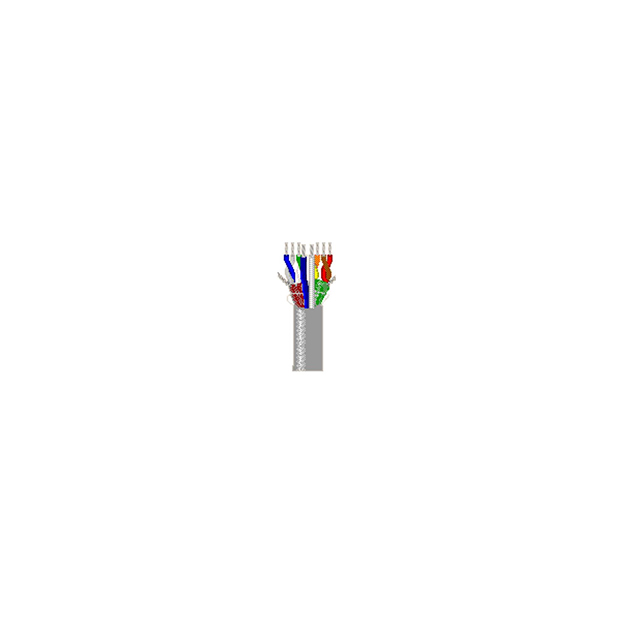

8787 060U500

Active

Belden Inc.

2 #22, 8 #24 FS PVC

Search across all available documentation for this part.

Active

Belden Inc.

2 #22, 8 #24 FS PVC

Technical Specifications

Parameters and characteristics for this part

Specification	8787 060U500

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE), Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	7/30, 7/32
Features	Drain Wire
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Audio, Instrumentation, Control
Voltage	350 V
Wire Gauge	22 AWG, 24 AWG

Part	Jacket (Insulation) Material	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Wire Gauge	Jacket Color	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand	Voltage	Number of Conductors	Conductor Material	Length [x]	Length [x]	Conductor Insulation
Belden Inc. 8787 060U500	Poly-Vinyl Chloride (PVC)	Multi-Conductor	-20 C	80 C	Drain Wire	22 AWG 24 AWG	Chrome	Audio Control Instrumentation	0.762 mm	0.03 in	7/30 7/32	350 V	10	Copper Tinned	500 '	152.4 m	Poly-Vinyl Chloride (PVC) Polyethylene (PE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10 (2 Quad+2) Conductor Multi-Conductor Cable Chrome 22 AWG, 24 AWG 500.0' (152.4m)
