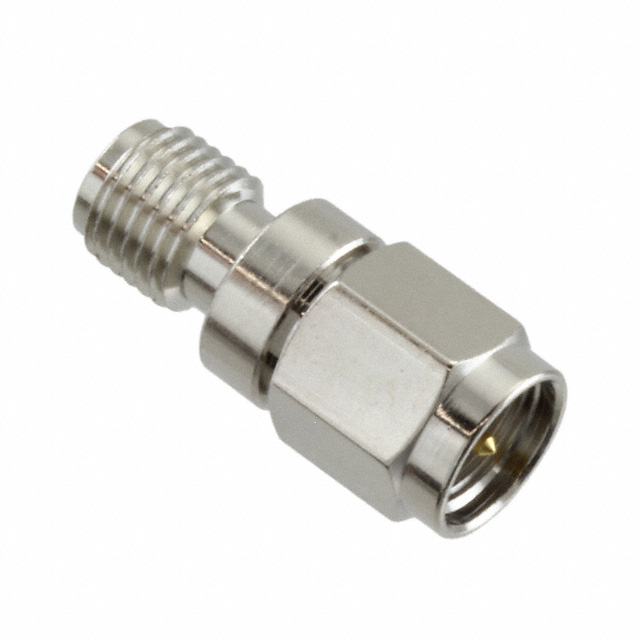

ADAPT/SMAM/SMAF/RP
ActiveSiretta Ltd
CONN ADAPT SMA PLUG-RP-SMA JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ADAPT/SMAM/SMAF/RP
ActiveSiretta Ltd
CONN ADAPT SMA PLUG-RP-SMA JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ADAPT/SMAM/SMAF/RP | ADAPT Series |
|---|---|---|
| Adapter Series | SMA to RP-SMA | SMA to RP-SMA, SMA to MMCX, SMA to FME, MCX to FME, TNC to FME, SMA to SMA, SMA to TNC, FME to FME, SMA to SMB, SMA to MCX |
| Adapter Type | Plug to Jack | Plug to Jack, Plug to Plug, Jack to Jack |
| Center Gender | Male to Male | Female to Female, Male to Male |
| Conversion Type | Between Series | Between Series, Same Series |
| Convert From (Adapter End) | SMA Plug, Male Pin | Female Socket, SMA Jack, SMA Plug, Male Pin, FME Jack, MCX Plug, Male Pin, FME Plug, Male Pin |
| Convert To (Adapter End) | RP-SMA Jack, Male Pin | Female Socket, RP-SMA Plug, RP-SMA Jack, Male Pin, MMCX Plug, FME Plug, SMA Jack, FME Jack, SMA Plug, TNC Jack, TNC Plug, SMB Jack, MMCX Jack, N Plug |
| Fastening Type | - | Threaded, Snap-On |
| Frequency - Max | - | 6000 MHz |
| Impedance | - | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Style | Straight | Straight, Right Angle |
ADAPT Series
CONN ADAPT SMA JACK-RP-SMA PLUG
| Part | Convert From (Adapter End) | Adapter Series | Conversion Type | Adapter Type | Mounting Type | Convert To (Adapter End) | Style | Center Gender | Frequency - Max [Max] | Fastening Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|
Siretta Ltd ADAPT/SMAF/SMAM/RP | Female Socket, SMA Jack | SMA to RP-SMA | Between Series | Plug to Jack | Free Hanging (In-Line) | Female Socket, RP-SMA Plug | Straight | Female to Female | |||
Siretta Ltd ADAPT/SMAM/SMAF/RP | SMA Plug, Male Pin | SMA to RP-SMA | Between Series | Plug to Jack | Free Hanging (In-Line) | Male Pin, RP-SMA Jack | Straight | Male to Male | |||
Siretta Ltd ADAPT/MMCXM/SMAF | Female Socket, SMA Jack | SMA to MMCX | Between Series | Plug to Jack | Free Hanging (In-Line) | Male Pin, MMCX Plug | Straight | 6000 MHz | Snap-On, Threaded | ||
Siretta Ltd ADAPT/FMEM/SMAF | Female Socket, SMA Jack | SMA to FME | Between Series | Plug to Jack | Free Hanging (In-Line) | FME Plug, Male Pin | Straight | 6000 MHz | |||
Siretta Ltd ADAPT/MCXF/FMEM | MCX to FME | Between Series | Plug to Jack | Free Hanging (In-Line) | FME Plug, Male Pin | Straight | 6000 MHz | Snap-On, Threaded | |||
Siretta Ltd ADAPT/FMEM/TNCM | TNC to FME | Between Series | Plug to Plug | Free Hanging (In-Line) | FME Plug, Male Pin | Straight | Male to Male | 6000 MHz | 50 Ohms | ||
Siretta Ltd ADAPT/SMAM/SMAF | SMA Plug, Male Pin | SMA to SMA | Same Series | Plug to Jack | Free Hanging (In-Line) | Female Socket, SMA Jack | Straight | 6000 MHz | 50 Ohms | ||
Siretta Ltd ADAPT/FMEF/SMAF | Female Socket, SMA Jack | SMA to FME | Between Series | Jack to Jack | Free Hanging (In-Line) | Female Socket, FME Jack | Straight | Female to Female | 6000 MHz | ||
Siretta Ltd ADAPT/SMAM/SMAM | SMA Plug, Male Pin | SMA to SMA | Same Series | Plug to Plug | Free Hanging (In-Line) | Male Pin, SMA Plug | Straight | Male to Male | 6000 MHz | 50 Ohms | |
Siretta Ltd ADAPT/SMAF/TNCMRP | Female Socket, SMA Jack | SMA to TNC | Between Series | Jack to Jack | Free Hanging (In-Line) | Female Socket, TNC Jack | Straight | Female to Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 6.14 | |
| 10 | $ 5.57 | |||
| 25 | $ 5.28 | |||
| 50 | $ 5.15 | |||
| 100 | $ 4.91 | |||
| 300 | $ 4.30 | |||
| 500 | $ 4.17 | |||
| 1000 | $ 3.56 | |||
| 2500 | $ 3.31 | |||
Description
General part information
ADAPT Series
Adapter Coaxial Connector SMA Plug, Male Pin To RP-SMA Jack, Male Pin
