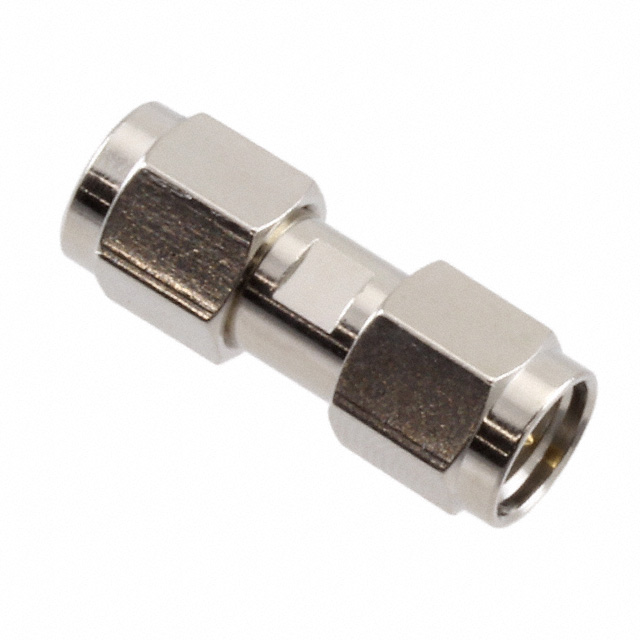

ADAPT/SMAM/SMAM

Active

Siretta Ltd

CONN ADAPT PLUG-PLUG SMA 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ADAPT/SMAM/SMAM

Active

Siretta Ltd

CONN ADAPT PLUG-PLUG SMA 50 OHM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	1	$ 6.21
		10	$ 5.64
		25	$ 5.34
		50	$ 5.22
		100	$ 4.97
		300	$ 4.35
		500	$ 4.22
		1000	$ 3.60
		2500	$ 3.35

Description

General part information

ADAPT Series

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Plug, Male Pin 50 Ohms

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ADAPT/SMAM/SMAM	ADAPT Series

Adapter Series	SMA to SMA	SMA to RP-SMA, SMA to MMCX, SMA to FME, MCX to FME, TNC to FME, SMA to SMA, SMA to TNC, FME to FME, SMA to SMB, SMA to MCX
Adapter Type	Plug to Plug	Plug to Jack, Plug to Plug, Jack to Jack
Center Gender	Male to Male	Female to Female, Male to Male
Conversion Type	Same Series	Between Series, Same Series
Convert From (Adapter End)	SMA Plug, Male Pin	Female Socket, SMA Jack, SMA Plug, Male Pin, FME Jack, MCX Plug, Male Pin, FME Plug, Male Pin
Convert To (Adapter End)	SMA Plug, Male Pin	Female Socket, RP-SMA Plug, RP-SMA Jack, Male Pin, MMCX Plug, FME Plug, SMA Jack, FME Jack, SMA Plug, TNC Jack, TNC Plug, SMB Jack, MMCX Jack, N Plug
Fastening Type	-	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz	6000 MHz
Impedance	50 Ohms	50 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Style	Straight	Straight, Right Angle

ADAPT Series

CONN ADAPT SMA JACK-RP-SMA PLUG

Part	Convert From (Adapter End)	Adapter Series	Conversion Type	Adapter Type	Mounting Type	Convert To (Adapter End)	Style	Center Gender	Frequency - Max [Max]	Fastening Type	Impedance
Siretta Ltd ADAPT/SMAF/SMAM/RP	Female Socket, SMA Jack	SMA to RP-SMA	Between Series	Plug to Jack	Free Hanging (In-Line)	Female Socket, RP-SMA Plug	Straight	Female to Female
Siretta Ltd ADAPT/SMAM/SMAF/RP	SMA Plug, Male Pin	SMA to RP-SMA	Between Series	Plug to Jack	Free Hanging (In-Line)	Male Pin, RP-SMA Jack	Straight	Male to Male
Siretta Ltd ADAPT/MMCXM/SMAF	Female Socket, SMA Jack	SMA to MMCX	Between Series	Plug to Jack	Free Hanging (In-Line)	Male Pin, MMCX Plug	Straight		6000 MHz	Snap-On, Threaded
Siretta Ltd ADAPT/FMEM/SMAF	Female Socket, SMA Jack	SMA to FME	Between Series	Plug to Jack	Free Hanging (In-Line)	FME Plug, Male Pin	Straight		6000 MHz
Siretta Ltd ADAPT/MCXF/FMEM		MCX to FME	Between Series	Plug to Jack	Free Hanging (In-Line)	FME Plug, Male Pin	Straight		6000 MHz	Snap-On, Threaded
Siretta Ltd ADAPT/FMEM/TNCM		TNC to FME	Between Series	Plug to Plug	Free Hanging (In-Line)	FME Plug, Male Pin	Straight	Male to Male	6000 MHz		50 Ohms
Siretta Ltd ADAPT/SMAM/SMAF	SMA Plug, Male Pin	SMA to SMA	Same Series	Plug to Jack	Free Hanging (In-Line)	Female Socket, SMA Jack	Straight		6000 MHz		50 Ohms
Siretta Ltd ADAPT/FMEF/SMAF	Female Socket, SMA Jack	SMA to FME	Between Series	Jack to Jack	Free Hanging (In-Line)	Female Socket, FME Jack	Straight	Female to Female	6000 MHz
Siretta Ltd ADAPT/SMAM/SMAM	SMA Plug, Male Pin	SMA to SMA	Same Series	Plug to Plug	Free Hanging (In-Line)	Male Pin, SMA Plug	Straight	Male to Male	6000 MHz		50 Ohms
Siretta Ltd ADAPT/SMAF/TNCMRP	Female Socket, SMA Jack	SMA to TNC	Between Series	Jack to Jack	Free Hanging (In-Line)	Female Socket, TNC Jack	Straight	Female to Female
