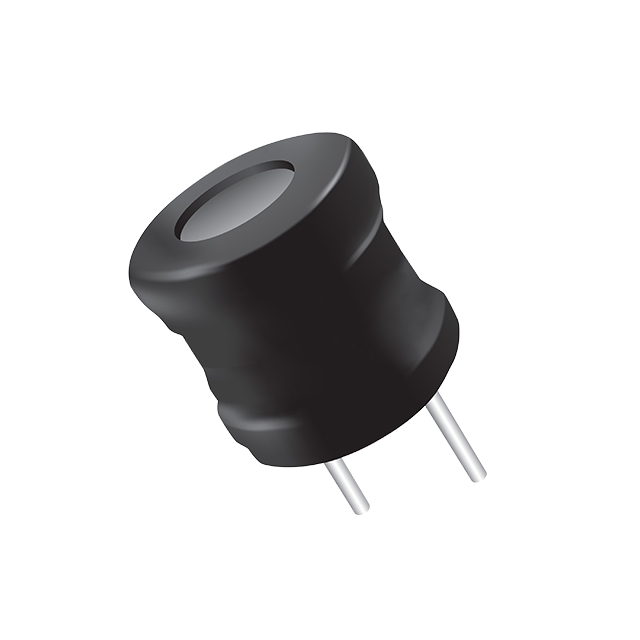

RLB1112V4-222J
ActiveBourns Inc.
INDUCTOR, 2200UH, 2.75 OHM, 3.5A ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
RLB1112V4-222J
ActiveBourns Inc.
INDUCTOR, 2200UH, 2.75 OHM, 3.5A ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RLB1112V4-222J |
|---|---|
| Current Rating (Amps) | 350 mA |
| DC Resistance (DCR) [Max] | 3.2 Ohm |
| Frequency - Self Resonant | 760 kHz |
| Height - Seated (Max) | 13.5 mm |
| Height - Seated (Max) [Max] [z] | 0.531 " |
| Inductance | 2.2 mH |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Vertical Cylinder |
| Q @ Freq | 252 kHz, 20 |
| Shielding | Unshielded |
| Size / Dimension [diameter] | 0.453 " |
| Size / Dimension [diameter] | 11.5 mm |
| Tolerance | 5 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RLB1112 Series
2.2 mH Unshielded Drum Core, Wirewound Inductor 350 mA 3.2Ohm Max Radial, Vertical Cylinder
