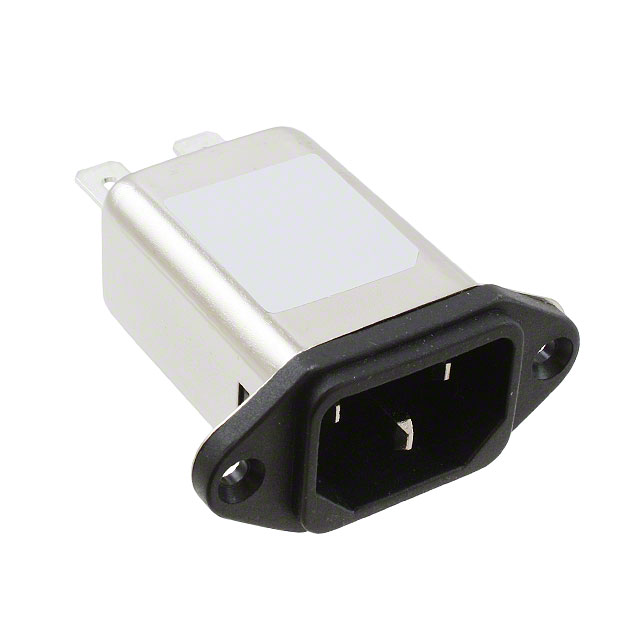

FN9233ER-3-06

Active

TE Connectivity Raychem Cable Protection

PWR ENT RCPT IEC320-C14 PANEL QC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN9233ER-3-06

Active

TE Connectivity Raychem Cable Protection

PWR ENT RCPT IEC320-C14 PANEL QC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN9233ER-3-06

Accomodates a Fuse	False
Approval Agency	UL, CQC, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Filter	3 A
Features	Earth Line Choke, Front or Rear Side Mount, Bleed Resistor
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Flange
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

Schaffner FN9233 Series

AC Power Entry Modules 12A 250VAC 50/60Hz wide mounting flange

...

Part	Filter Type	Current Rating - Filter	Connector Style	Termination	Termination	Termination	Ingress Protection	Material Flammability Rating	Mounting Type	Features	Connector Type	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency
TE Connectivity Raychem Cable Protection FN9233S1R-12-06	Filtered (EMI RFI) - Commercial	12 A	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	IP40	UL94 V-2	Panel Mount Snap-In	Bleed Resistor	Male Blades Receptacle	0.028 in	0.059 in	0.7 mm	1.5 mm	21.9 mm	28.5 mm	CQC CSA ENEC UL
TE Connectivity Raychem Cable Protection FN9233R-1-06	Filtered (EMI RFI) - Commercial	1 A	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	IP40	UL94 V-2	Flange Panel Mount	Bleed Resistor Front or Rear Side Mount	Male Blades Receptacle							CQC CSA ENEC UL
TE Connectivity Raychem Cable Protection FN9233ESB-8-06	Filtered (EMI RFI) - Commercial Medical	8 A	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	IP40	UL94 V-2	Panel Mount Snap-In	Bleed Resistor Earth Line Choke	Male Blades Receptacle	0.028 in	0.059 in	0.7 mm	1.5 mm	20.8 mm	29.4 mm	CQC CSA ENEC UL
TE Connectivity Raychem Cable Protection FN9233R-3-06	Filtered (EMI RFI) - Commercial	3 A	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	IP40	UL94 V-2	Flange Panel Mount	Bleed Resistor Front or Rear Side Mount	Male Blades Receptacle							CQC CSA ENEC UL
TE Connectivity Raychem Cable Protection FN9233S1-3-06	Filtered (EMI RFI) - Commercial	3 A	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	IP40	UL94 V-2	Panel Mount Snap-In		Male Blades Receptacle	0.028 in	0.059 in	0.7 mm	1.5 mm	21.9 mm	28.5 mm	CQC CSA ENEC UL
TE Connectivity Raychem Cable Protection FN9233S1R-1-06	Filtered (EMI RFI) - Commercial	1 A	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	IP40	UL94 V-2	Panel Mount Snap-In	Bleed Resistor	Male Blades Receptacle	0.028 in	0.059 in	0.7 mm	1.5 mm	21.9 mm	28.5 mm	CQC CSA ENEC UL
TE Connectivity Raychem Cable Protection FN9233EU-1-06	Filtered (EMI RFI) - Commercial	1 A	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	IP40	UL94 V-2	Flange Panel Mount	Earth Line Choke Front or Rear Side Mount	Male Blades Receptacle							CQC CSA ENEC UL
TE Connectivity Raychem Cable Protection FN9233ESB-10-06	Filtered (EMI RFI) - Commercial Medical	10 A	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	IP40	UL94 V-2	Panel Mount Snap-In	Bleed Resistor Earth Line Choke	Male Blades Receptacle	0.028 in	0.059 in	0.7 mm	1.5 mm	20.8 mm	29.4 mm	CQC CSA ENEC UL
TE Connectivity Raychem Cable Protection FN9233ER-3-06	Filtered (EMI RFI) - Commercial	3 A	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	IP40	UL94 V-2	Flange Panel Mount	Bleed Resistor Earth Line Choke Front or Rear Side Mount	Male Blades Receptacle							CQC CSA ENEC UL
TE Connectivity Raychem Cable Protection FN9233S1R-10-06	Filtered (EMI RFI) - Commercial	10 A	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	IP40	UL94 V-2	Panel Mount Snap-In	Bleed Resistor	Male Blades Receptacle	0.028 in	0.059 in	0.7 mm	1.5 mm	21.9 mm	28.5 mm	CQC CSA ENEC UL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	120	$ 10.89

Description

General part information

Schaffner FN9233 Series

AC Power Entry Modules 12A 250VAC 50/60Hz wide mounting flange
