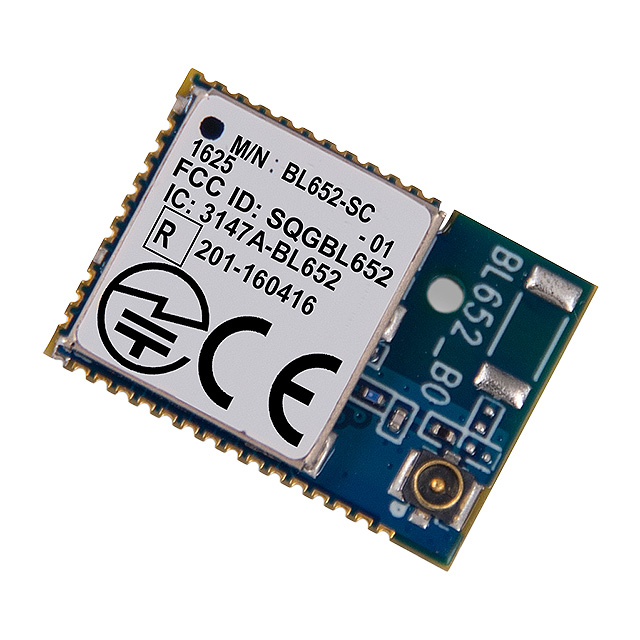

BL652-SC-01-T/R

Active

Ezurio LLC

RF TXRX MOD BTIPEX MHF4 SMD

Search across all available documentation for this part.

Active

Ezurio LLC

RF TXRX MOD BTIPEX MHF4 SMD

Technical Specifications

Parameters and characteristics for this part

Specification	BL652-SC-01-T/R

Antenna Type	Antenna Not Included, I-PEX MHF4
Current - Receiving	5.4 mA
Current - Transmitting	5.3 mA
Data Rate	1 Mbps
Frequency	2.4 GHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	39-SMD Module
Power - Output	4 dBm
Protocol	Bluetooth v5.0
RF Family/Standard	Bluetooth
Serial Interfaces	UART, I2C, SPI
Utilized IC / Part	nRF52832
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.7 V

RF TXRX MOD BTIPEX MHF4 SMD

Part	Antenna Type	Current - Transmitting	Power - Output	Data Rate	Serial Interfaces	Package / Case	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Receiving	Protocol	Utilized IC / Part
Ezurio LLC BL652-SC-01-T/R	Antenna Not Included, I-PEX MHF4	5.3 mA	4 dBm	1 Mbps	I2C, SPI, UART	39-SMD Module	Bluetooth	85 °C	-40 °C	Surface Mount	2.4 GHz	3.6 V	1.7 V	5.4 mA	Bluetooth v5.0	nRF52832

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 9.29
	Digi-Reel®	1	$ 9.29
	Tape & Reel (TR)	1000	$ 8.48

General part information

Bluetooth Bluetooth v5.0 Transceiver Module 2.4GHz Antenna Not Included, I-PEX MHF4 Surface Mount
