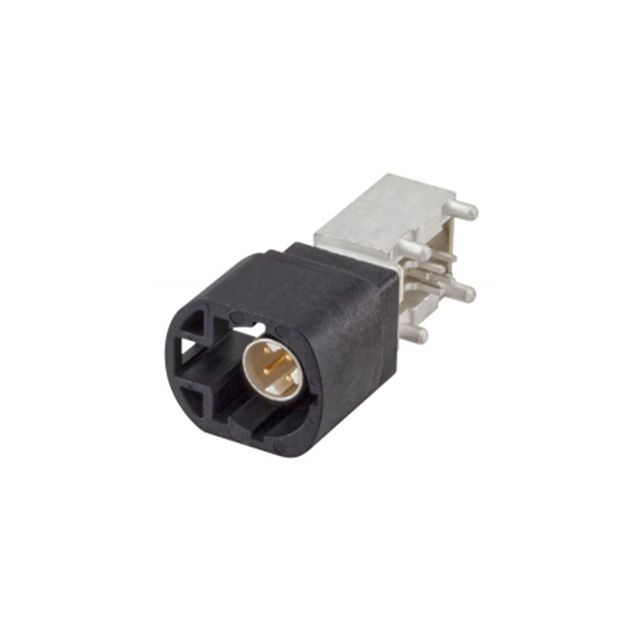

Specification	D4S20D-40MA5-A

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	Fakra, Quadraxial, HSD®
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)
Fastening Type	Latch Lock
Features	Code A
Features - Code	A
Frequency - Max	2 GHz
Housing Color	Black
Impedance	100 Ohm
Insertion Loss	0.1 dB
Mating Cycles	25 cycles
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Solder
Voltage Rating	100 VAC

D4S20D Series

Part	Connector Type	Impedance	Mounting Type	Contact Termination	Frequency - Max	Features	Number of Ports	Center Contact Material	Connector Style	Housing Color	Fastening Type	Shield Termination	Insertion Loss	Body Material	Body Finish	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Center Contact Plating	Voltage Rating	Features - Code
Rosenberger D4S20D-40MA5-D	Male Pin Plug	100 Ohm	Right Angle Through Hole	Solder	2 GHz	Code D	1	Bronze	Fakra HSD® Quadraxial	Bordeaux Violet	Latch Lock	Solder	0.1 dB	Brass	Nickel	25 cycles	-40 °C	105 °C	Liquid Crystal Polymer (LCP)	Gold	100 VAC
Rosenberger D4S20D-40MA5-A	Male Pin Plug	100 Ohm	Right Angle Through Hole	Solder	2 GHz	Code A	1	Bronze	Fakra HSD® Quadraxial	Black	Latch Lock	Solder	0.1 dB	Brass	Nickel	25 cycles	-40 °C	105 °C	Liquid Crystal Polymer (LCP)	Gold	100 VAC	A
Rosenberger D4S20D-40MA5-Z	Male Pin Plug	100 Ohm	Right Angle Through Hole	Solder	2 GHz	Code Z	1	Bronze	Fakra HSD® Quadraxial	Blue Water	Latch Lock	Solder	0.1 dB	Brass	Nickel	25 cycles	-40 °C	105 °C	Liquid Crystal Polymer (LCP)	Gold	100 VAC
Rosenberger D4S20D-40MA5-B	Male Pin Plug	100 Ohm	Right Angle Through Hole	Solder	2 GHz	Code B	1	Bronze	Fakra HSD® Quadraxial	White	Latch Lock	Solder	0.1 dB	Brass	Nickel	25 cycles	-40 °C	105 °C	Liquid Crystal Polymer (LCP)	Gold	100 VAC
Rosenberger D4S20D-40MA5-E	Male Pin Plug	100 Ohm	Right Angle Through Hole	Solder	2 GHz	Code E	1	Bronze	Fakra HSD® Quadraxial	Green	Latch Lock	Solder	0.1 dB	Brass	Nickel	25 cycles	-40 °C	105 °C	Liquid Crystal Polymer (LCP)	Gold	100 VAC	E
Rosenberger D4S20D-40MA5-F	Male Pin Plug	100 Ohm	Right Angle Through Hole	Solder	2 GHz	Code F	1	Bronze	Fakra HSD® Quadraxial	Brown	Latch Lock	Solder	0.1 dB	Brass	Nickel	25 cycles	-40 °C	105 °C	Liquid Crystal Polymer (LCP)	Gold	100 VAC
Rosenberger D4S20D-40MA5-H	Male Pin Plug	100 Ohm	Right Angle Through Hole	Solder	2 GHz	Code H	1	Bronze	Fakra HSD® Quadraxial	Violet	Latch Lock	Solder	0.1 dB	Brass	Nickel	25 cycles	-40 °C	105 °C	Liquid Crystal Polymer (LCP)	Gold	100 VAC
