T13X9100120-000
ActiveTE Connectivity AMP Connectors
H10A-T-M20
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T13X9100120-000 | T13X Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated, Zinc |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom, Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H10A | H10A, H10B, H32A |
| Size / Dimension [x] | 63.2 mm | 63.2 - 82 mm |
| Size / Dimension [x] | 2.488 " | 2.488 - 3.228 " |
| Size / Dimension [y] | 1.169 in | 1.169 - 2.205 in |
| Size / Dimension [y] | 29.7 mm | 29.7 - 56 mm |
| Size / Dimension [z] | 2.291 " | 2.291 - 2.992 " |
| Size / Dimension [z] | 58.2 mm | 58.2 - 76 mm |
| Style | Side Entry | Side Entry, Side and Top Entry |
| Thread Size | M20 | PG11, M20, M25, M32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.77 | |
| 10 | $ 8.84 | |||
| 25 | $ 8.60 | |||
| 50 | $ 8.28 | |||
| 100 | $ 7.67 | |||
| 250 | $ 7.62 | |||
| 500 | $ 7.34 | |||
| 1000 | $ 6.55 | |||
T13X Series
H10A-T-PG11
| Part | Lock Location | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Connector Type | Housing Color | Ingress Protection | Housing Finish | Housing Material | Style | Operating Temperature [Max] | Operating Temperature [Min] | Thread Size | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T13X9100111-000 | Locking Clip (1) on Base Bottom | 2.291 " | 63.2 mm | 2.488 " | 58.2 mm | 1.169 in | 29.7 mm | Hood | Gray | IP65 - Dust Tight, Water Resistant | Powder Coated | Aluminum Alloy, Die Cast | Side Entry | 125 °C | -40 °C | PG11 | H10A |
TE Connectivity AMP Connectors T13X9100120-000 | Locking Clip (1) on Base Bottom | 2.291 " | 63.2 mm | 2.488 " | 58.2 mm | 1.169 in | 29.7 mm | Hood | Gray | IP65 - Dust Tight, Water Resistant | Powder Coated | Aluminum Alloy, Die Cast | Side Entry | 125 °C | -40 °C | M20 | H10A |
TE Connectivity AMP Connectors T13X0100225-000 | Locking Clip (1) on Base Bottom | 2.835 in | 73 mm | 2.874 in | 72 mm | 1.693 in | 43 mm | Hood | Gray | IP65 - Dust Tight, Water Resistant | Powder Coated | Aluminum Alloy, Die Cast | Side and Top Entry | 125 °C | -40 °C | M25 | H10B |
TE Connectivity AMP Connectors T13X9323232-000 | Locking Clip (2) on Base Bottom | 2.992 in | 82 mm | 3.228 in | 76 mm | 2.205 in | 56 mm | Hood | IP65 - Dust Tight, Water Resistant | Zinc | Aluminum Alloy, Die Cast | Side and Top Entry | 125 °C | -40 °C | M32 | H32A |
Description
General part information
T13X Series

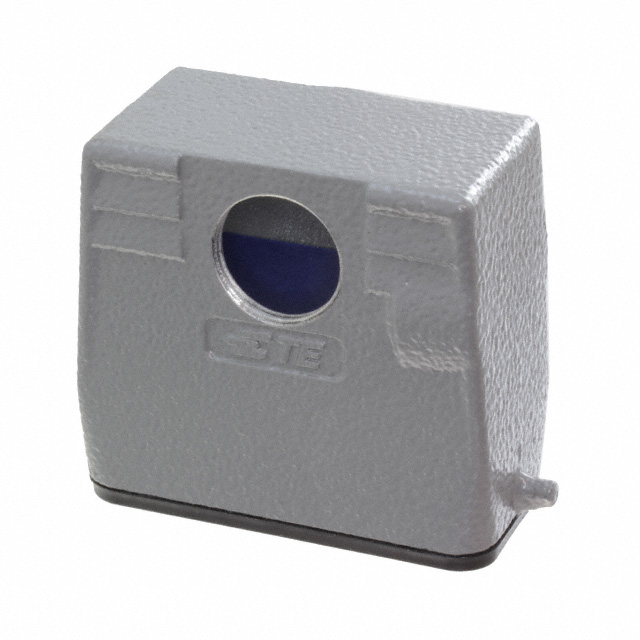

Hood Connector Side Entry M20 H10A IP65 - Dust Tight, Water Resistant
