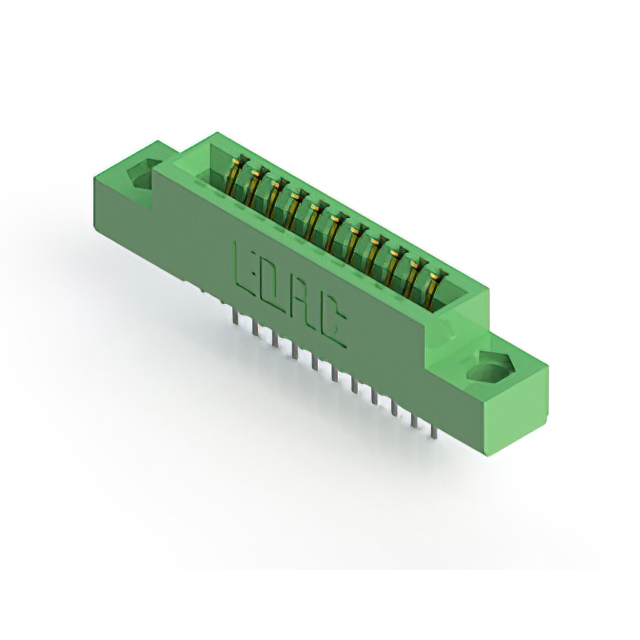

341-011-522-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 11POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
341-011-522-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 11POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-011-522-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 11 |
| Number of Positions/Bay/Row [custom] | 11 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
341-011 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Termination Rows | Card Type | Color | Pitch [x] | Pitch [x] | Read Out | Material - Insulation | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Number of Positions/Bay/Row [custom] | Contact Finish | Number of Rows | Termination | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Female | 1 | Non Specified - Single Edge | Green | 2.54 mm | 0.1 in | Single | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 11 | 11 | Gold | 1 | Solder | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | |||
EDAC Inc. | -40 °C | 105 ░C | Female | 1 | Non Specified - Single Edge | Green | 2.54 mm | 0.1 in | Single | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 11 | 11 | Gold | 1 | Solder | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in |
EDAC Inc. | -40 °C | 105 ░C | Female | 1 | Non Specified - Single Edge | Green | 2.54 mm | 0.1 in | Single | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 11 | 11 | Gold | 1 | Solder | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " |
EDAC Inc. | -40 °C | 105 ░C | Female | 1 | Non Specified - Single Edge | Green | 2.54 mm | 0.1 in | Single | Diallyl Phthalate (DAP) | Copper Alloy | 10 Áin | 0.25 Ám | 11 | 11 | Gold | 1 | Solder Eyelet(s) | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | -40 °C | 105 ░C | Female | 1 | Non Specified - Single Edge | Green | 2.54 mm | 0.1 in | Single | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 11 | 11 | Gold | 1 | Solder | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | ||
EDAC Inc. | -40 °C | 105 ░C | Female | 1 | Non Specified - Single Edge | Green | 2.54 mm | 0.1 in | Single | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 11 | 11 | Gold | 1 | Solder | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in |
EDAC Inc. | -40 °C | 105 ░C | Female | 1 | Non Specified - Single Edge | Green | 2.54 mm | 0.1 in | Single | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 11 | 11 | Gold | 1 | Solder | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in |
EDAC Inc. | -40 °C | 105 ░C | Female | 1 | Non Specified - Single Edge | Green | 2.54 mm | 0.1 in | Single | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 11 | 11 | Gold | 1 | Solder | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in |
EDAC Inc. | -40 °C | 105 ░C | Female | 1 | Non Specified - Single Edge | Green | 2.54 mm | 0.1 in | Single | Diallyl Phthalate (DAP) | Copper Alloy | 10 Áin | 0.25 Ám | 11 | 11 | Gold | 1 | Solder Eyelet(s) | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " |
EDAC Inc. | -40 °C | 105 ░C | Female | 1 | Non Specified - Single Edge | Green | 2.54 mm | 0.1 in | Single | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 11 | 11 | Gold | 1 | Solder | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 6.44 | |
Description
General part information
341-011 Series
11 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
