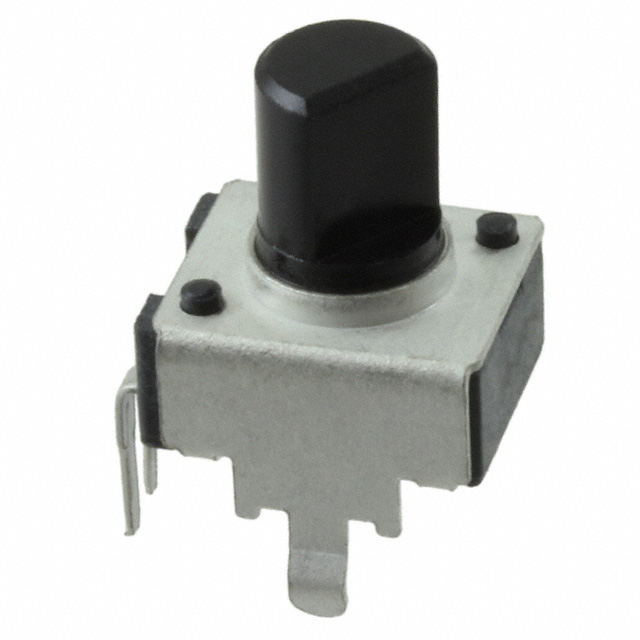

PTV09A-4015F-B103

Active

Bourns Inc.

POT 10K OHM 1/20W CARBON LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTV09A-4015F-B103

Active

Bourns Inc.

POT 10K OHM 1/20W CARBON LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTV09A-4015F-B103

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length	15 mm
Actuator Length [z]	0.591 in
Actuator Type	Flatted
Adjustment Type	Top Adjustment
Built in Switch	False
Mounting Type	Through Hole, Snap In
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.05 W
Power (Watts)	50 mW
Resistance (Ohms)	10k
Resistive Material	Carbon
Rotation	280 °
Size - Body [x]	11 mm
Size - Body [x]	0.433 "
Size - Body [y]	9.7 mm
Size - Body [y]	0.382 "
Taper	Linear
Termination Style	Board Locks, PC Pins
Tolerance	20 %

PTV09A Series

Part	Mounting Type	Resistive Material	Termination Style	Actuator Length [z]	Actuator Length	Resistance (Ohms)	Taper	Rotation	Adjustment Type	Size - Body [x]	Size - Body [x]	Size - Body [y]	Size - Body [y]	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Power (Watts)	Power (Watts)	Number of Gangs	Actuator Type	Tolerance	Number of Turns	Actuator Length [x]	Actuator Length [x]	Resistance (Ohms)	Actuator Length [z]	Built in Switch
Bourns Inc. PTV09A-2015S-A203	Snap In Through Hole	Carbon	Board Locks PC Pins	0.591 in	15 mm	20 kOhms	Logarithmic	280 °	Side Adjustment	11 mm	0.433 "	9.7 mm	0.382 "	0.236 in	6 mm	0.05 W	50 mW	1	Knurled and Slotted	20 %	1
Bourns Inc. PTV09A-4025S-A103	Snap In Through Hole	Carbon	Board Locks PC Pins				Logarithmic	280 °	Top Adjustment	11 mm	0.433 "	9.7 mm	0.382 "	0.236 in	6 mm	0.05 W	50 mW	1	Knurled and Slotted	20 %	1	0.984 in	25 mm	10k
Bourns Inc. PTV09A-4025U-A104	Snap In Through Hole	Carbon	Board Locks PC Pins			100 kOhms	Logarithmic	280 °	Top Adjustment	11 mm	0.433 "	9.7 mm	0.382 "	0.236 in	6 mm	0.05 W	50 mW	1	Knurled	20 %	1	0.984 in	25 mm
Bourns Inc. PTV09A-4030F-B502	Snap In Through Hole	Carbon	Board Locks PC Pins	1.181 in		5 kOhms	Linear	280 °	Top Adjustment	11 mm	0.433 "	9.7 mm	0.382 "	0.236 in	6 mm	0.05 W	50 mW	1	Flatted	20 %	1				30 mm
Bourns Inc. PTV09A-2025F-B105	Snap In Through Hole	Carbon	Board Locks PC Pins				Linear	280 °	Side Adjustment	11 mm	0.433 "	9.7 mm	0.382 "	0.236 in	6 mm	0.05 W	50 mW	1	Flatted	20 %	1	0.984 in	25 mm	1M
Bourns Inc. PTV09A-4015F-A503	Snap In Through Hole	Carbon	Board Locks PC Pins	0.591 in	15 mm	50 kOhms	Logarithmic	280 °	Top Adjustment	11 mm	0.433 "	9.7 mm	0.382 "	0.236 in	6 mm	0.05 W	50 mW	1	Flatted	20 %	1
Bourns Inc. PTV09A-2015F-B504	Snap In Through Hole	Carbon	Board Locks PC Pins	0.591 in	15 mm	500 kOhms	Linear	280 °	Side Adjustment	11 mm	0.433 "	9.7 mm	0.382 "	0.236 in	6 mm	0.05 W	50 mW	1	Flatted	20 %	1
Bourns Inc. PTV09A-4015F-B103	Snap In Through Hole	Carbon	Board Locks PC Pins	0.591 in	15 mm		Linear	280 °	Top Adjustment	11 mm	0.433 "	9.7 mm	0.382 "	0.236 in	6 mm	0.05 W	50 mW	1	Flatted	20 %	1			10k
Bourns Inc. PTV09A-2020S-B103	Snap In Through Hole	Carbon	Board Locks PC Pins	0.787 in			Linear	280 °	Side Adjustment	11 mm	0.433 "	9.7 mm	0.382 "	0.236 in	6 mm	0.05 W	50 mW	1	Knurled and Slotted	20 %	1			10k	20 mm
Bourns Inc. PTV09A-4225S-B103	Snap In Through Hole	Carbon	Board Locks PC Pins				Linear	280 °	Top Adjustment	11 mm	0.433 "	9.7 mm	0.382 "	0.236 in	6 mm	0.05 W	50 mW	1	Knurled and Slotted	20 %	1	0.984 in	25 mm	10k		Detent

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.89
		10	$ 0.76
		100	$ 0.64
		500	$ 0.56
		1000	$ 0.53
		5000	$ 0.47
		10000	$ 0.45

Description

General part information

PTV09A Series

10k Ohm 1 Gang Linear Through Hole, Snap In Potentiometer 1.0 Turns Carbon 0.05W, 1/20W PC Pins, Board Locks
