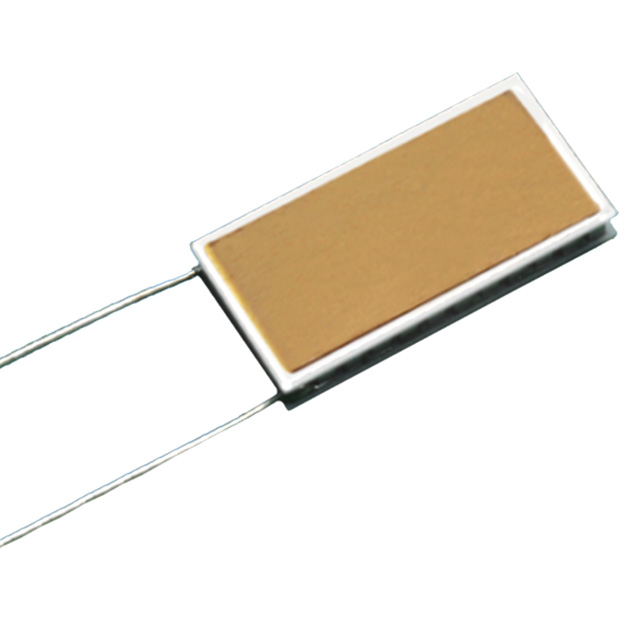

CM29-1.9-01AC

Active

Marlow Industries, Inc.

TEM 10.2X6.02X1.68MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 10.2X6.02X1.68MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CM29-1.9-01AC	CM29-1 Series

Current - Max [Max]	1.9 A	1.9 A
Delta Tmax @ Th	71 °C, 27 °C	27 - 71 °C
Features	Exterior Metallization (Both Sides), Lead Wires	Exterior Metallization (Both Sides), Lead Wires
Height [z]	1.68 mm	1.62 - 1.68 mm
Number of Stages	1	1
Qmax @ Th	4.3 W	4.3 W
Resistance	1.54 Ohms	1.54 Ohms
Size / Dimension [x]	10.2 mm	10.2 mm
Size / Dimension [y]	6.02 mm	6.02 mm
Voltage - Max [Max]	3.5 V	3.5 V

TEM 10.2X6.02X1.68MM

Part	Voltage - Max [Max]	Features	Resistance	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Current - Max [Max]	Qmax @ Th	Delta Tmax @ Th	Number of Stages
Marlow Industries, Inc. CM29-1.9-01AC	3.5 V	Exterior Metallization (Both Sides), Lead Wires	1.54 Ohms	6.02 mm	10.2 mm	1.68 mm	1.9 A	4.3 W	27 °C, 71 °C	1
Marlow Industries, Inc. CM29-1.9-05AC	3.5 V	Exterior Metallization (Both Sides), Lead Wires	1.54 Ohms	6.02 mm	10.2 mm	1.68 mm	1.9 A	4.3 W	27 °C, 71 °C	1
Marlow Industries, Inc. CM29-1.9-04AC	3.5 V		1.54 Ohms	6.02 mm	10.2 mm	1.68 mm	1.9 A	4.3 W	27 °C, 71 °C	1
Marlow Industries, Inc. CM29-1.9-06AC	3.5 V	Lead Wires	1.54 Ohms	6.02 mm	10.2 mm	1.62 mm	1.9 A	4.3 W	27 °C, 71 °C	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 4.3W @ 27°C 1.9 A 85°C
