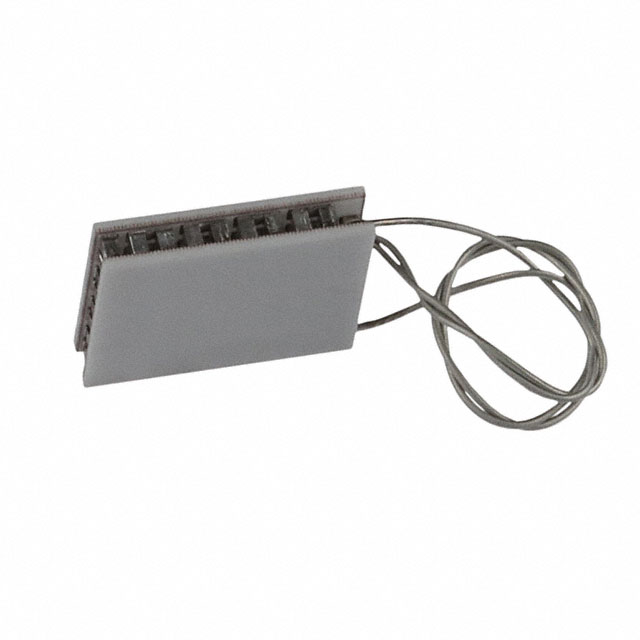

CM29-1.9-06AC

Active

Marlow Industries, Inc.

TEM 10.2X6.02X1.68MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 10.2X6.02X1.68MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 4.3W @ 27°C 1.9 A 85°C

Technical documentation and resources

Specification	CM29-1.9-06AC	CM29-1 Series

Current - Max [Max]	1.9 A	1.9 A
Delta Tmax @ Th	71 °C, 27 °C	27 - 71 °C
Features	Lead Wires	Exterior Metallization (Both Sides), Lead Wires
Height [z]	1.62 mm	1.62 - 1.68 mm
Number of Stages	1	1
Qmax @ Th	4.3 W	4.3 W
Resistance	1.54 Ohms	1.54 Ohms
Size / Dimension [x]	10.2 mm	10.2 mm
Size / Dimension [y]	6.02 mm	6.02 mm
Voltage - Max [Max]	3.5 V	3.5 V

Part	Voltage - Max [Max]	Features	Resistance	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Current - Max [Max]	Qmax @ Th	Delta Tmax @ Th	Number of Stages
Marlow Industries, Inc. CM29-1.9-01AC	3.5 V	Exterior Metallization (Both Sides), Lead Wires	1.54 Ohms	6.02 mm	10.2 mm	1.68 mm	1.9 A	4.3 W	27 °C, 71 °C	1
Marlow Industries, Inc. CM29-1.9-05AC	3.5 V	Exterior Metallization (Both Sides), Lead Wires	1.54 Ohms	6.02 mm	10.2 mm	1.68 mm	1.9 A	4.3 W	27 °C, 71 °C	1
Marlow Industries, Inc. CM29-1.9-04AC	3.5 V		1.54 Ohms	6.02 mm	10.2 mm	1.68 mm	1.9 A	4.3 W	27 °C, 71 °C	1
Marlow Industries, Inc. CM29-1.9-06AC	3.5 V	Lead Wires	1.54 Ohms	6.02 mm	10.2 mm	1.62 mm	1.9 A	4.3 W	27 °C, 71 °C	1
