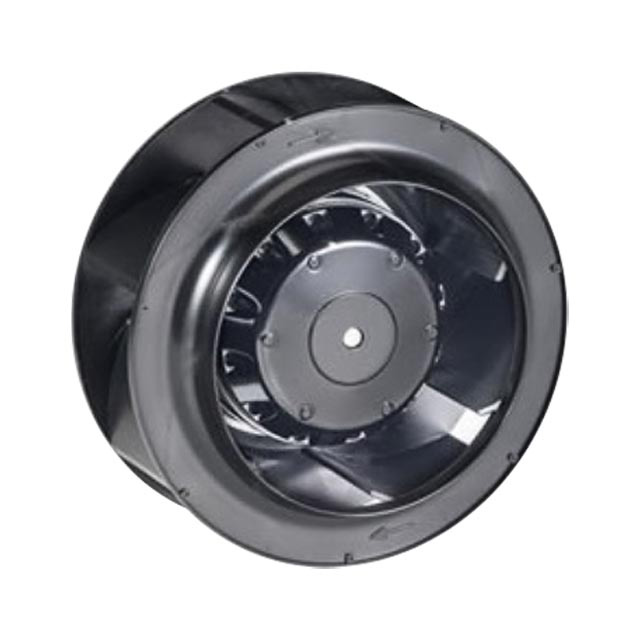

OAB13391-22-1WB
ActiveOrion Fans
FAN IMP MTRZD 133X91MM 230VAC W/
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OAB13391-22-1WB |
|---|---|
| Air Flow | 5.26 m³/min |
| Air Flow | 188 CFM |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.21 A |
| Fan Type | Motorized Impellers |
| Features | Thermal Overload Protector (TOP) |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Thermoplastic |
| Material - Frame | Aluminum |
| Noise | 60 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 39 W |
| RPM | 3200 RPM |
| Size / Dimension [diameter] | 133 mm |
| Static Pressure | 0.88 in H2O |
| Static Pressure | 219.2 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 230 VAC |
| Weight | 1.2 kg |
| Weight | 2.7 lbs |
| Width [y] | 91.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 105.73 | |
| 10 | $ 94.26 | |||
| 25 | $ 90.05 | |||
| 50 | $ 86.98 | |||
| 100 | $ 84.02 | |||
Description
General part information
OAB13391 Series
Fan Motorized Impellers 230VAC Round - 133mm Dia Ball 188.0 CFM (5.26m³/min) 2 Wire Leads
