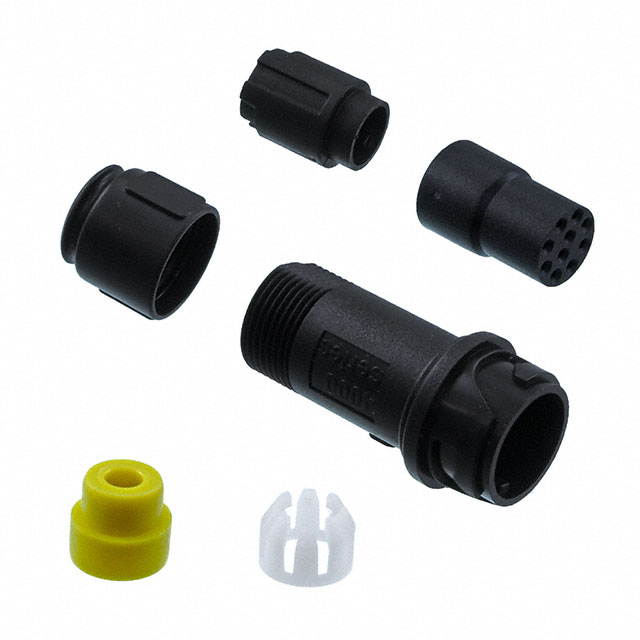

PXP4011/10S/5055
ActiveBULGIN LIMITED
CONN RCPT HSG FMALE 10POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
PXP4011/10S/5055
ActiveBULGIN LIMITED
CONN RCPT HSG FMALE 10POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PXP4011/10S/5055 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Type | Crimp and Solder Cup |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant, Backshell |
| Housing Color | Black |
| Ingress Protection | IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polycarbonate/Polybutylene Terephthalate (PBT), Halogen Free |
| Shielding | Unshielded |
| Type | For Female Sockets |
buccaneer-4000 Series
...
| Part | Contact Type | Material Flammability Rating | Housing Color | Number of Positions | Shell Material | Primary Material | Connector Type | Orientation | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Type | Mounting Type | Features | Contact Shape | Note | Fastening Type | Length - Overall [x] | Length - Overall [x] | Color - Cable | Bend Radius | Color - Connectors | 2nd Connector | Fiber Type | Cable Type | Jacket (Insulation) Material | Cable Diameter [diameter] | Cable Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | Crimp and Solder Cup | UL94 V-0 | Black | 4 | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Plastic | Receptacle Housing | Keyed | Unshielded | -40 °C | 120 °C | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | For Male Pins | Free Hanging (In-Line) | Backshell UV Resistant | Circular | Contacts Not Included | Bayonet Lock | |||||||||||
BULGIN LIMITED | Crimp and Solder Cup | UL94 V-0 | Black | 8 | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Plastic | Receptacle Housing | Keyed | Unshielded | -40 °C | 120 °C | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | For Female Sockets | Free Hanging (In-Line) | Backshell UV Resistant | Circular | Contacts Not Included | Bayonet Lock | |||||||||||
BULGIN LIMITED | Crimp and Solder Cup | UL94 V-0 | Black Blue | 10 | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Plastic | Plug Housing | Keyed | Unshielded | -40 °C | 120 °C | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | For Male Pins | Free Hanging (In-Line) | Backshell Coupling Nut UV Resistant | Circular | Contacts Not Included | Bayonet Lock | |||||||||||
BULGIN LIMITED | Crimp and Solder Cup | UL94 V-0 | Black Blue | 12 | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Plastic | Plug Housing | Keyed | Unshielded | -40 °C | 120 °C | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | For Female Sockets | Free Hanging (In-Line) | Backshell Coupling Nut UV Resistant | Circular | Contacts Not Included | Bayonet Lock | |||||||||||
BULGIN LIMITED | -25 °C | 70 °C | Multimode OM1 Simplex | IP66 IP68 IP69K Low Smoke | 10 m | 32.8 ft | Orange | 30 mm | Black Blue | LC | 62.5/125 | Buffered Fiber | Poly-Vinyl Chloride (PVC) | 2 mm | 0.08 in | ||||||||||||||
BULGIN LIMITED | Crimp and Solder Cup | UL94 V-0 | Black Blue | 10 | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Plastic | Plug Housing | Keyed | Unshielded | -40 °C | 120 °C | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | For Female Sockets | Free Hanging (In-Line) | Backshell Coupling Nut UV Resistant | Circular | Contacts Not Included | Bayonet Lock | |||||||||||
BULGIN LIMITED | Crimp and Solder Cup | UL94 V-0 | Black | 10 | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Plastic | Receptacle Housing | Keyed | Unshielded | -40 °C | 120 °C | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | For Male Pins | Free Hanging (In-Line) | Backshell UV Resistant | Circular | Contacts Not Included | Bayonet Lock | |||||||||||
BULGIN LIMITED | Crimp and Solder Cup | UL94 V-0 | Black | 2 | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Plastic | Receptacle Housing | Keyed | Unshielded | -40 °C | 120 °C | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | For Male Pins | Free Hanging (In-Line) | Backshell UV Resistant | Circular | Contacts Not Included | Bayonet Lock | |||||||||||
BULGIN LIMITED | Crimp and Solder Cup | UL94 V-0 | Black Blue | 12 | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Plastic | Plug Housing | Keyed | Unshielded | -40 °C | 120 °C | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | For Female Sockets | Free Hanging (In-Line) | Backshell Coupling Nut UV Resistant | Circular | Contacts Not Included | Bayonet Lock | |||||||||||
BULGIN LIMITED | Crimp and Solder Cup | UL94 V-0 | Black | 10 | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Plastic | Receptacle Housing | Keyed | Unshielded | -40 °C | 120 °C | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | For Female Sockets | Free Hanging (In-Line) | Backshell UV Resistant | Circular | Contacts Not Included | Bayonet Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.09 | |
| 10 | $ 12.83 | |||
| 25 | $ 12.02 | |||
| 50 | $ 11.45 | |||
| 100 | $ 10.90 | |||
| 250 | $ 10.22 | |||
| 500 | $ 9.73 | |||
| 1000 | $ 9.27 | |||
Description
General part information
buccaneer-4000 Series
10 (Power) Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell, UV Resistant
