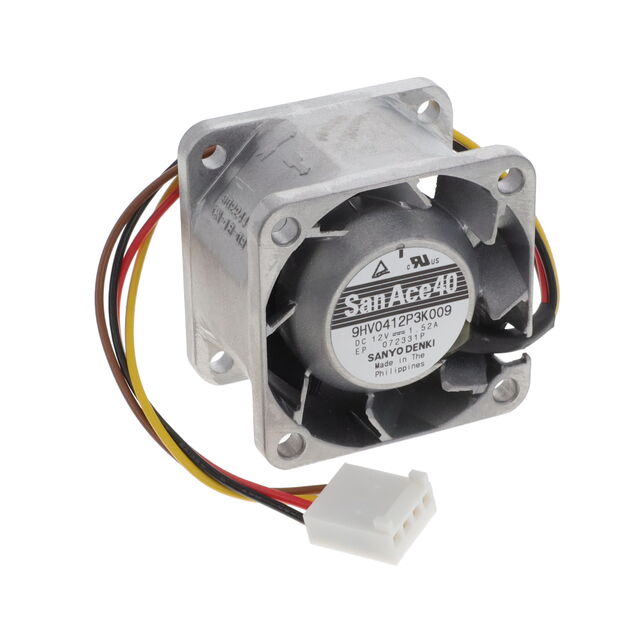

Specification	9HV0412P3K009

Bearing Type	Ball
Current Rating	1.52 A
Fan Type	Tubeaxial
Features	PWM Control, Locked Rotor Protection, Speed Sensor (Tach)
Material - Blade	Plastic
Material - Frame	Plastic
Noise	65 dB
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
RPM	25000 RPM
Size / Dimension Height	40 mm
Size / Dimension Length	40 mm
Size / Dimension Shape	Square
Termination	4 Position Rectangular Connector
Termination Leads Count	4 leads
Termination Type	Position Rectangular Connector
Voltage - Rated	12 VAC
Voltage Range (Max)	12.6 VDC
Voltage Range (Min)	10.8 VDC
Weight	0.133 lb
Width	28 mm

9HV0412 Series

Part	Voltage Range (Min)	Voltage Range (Max)	Material - Blade	Material - Frame	Current Rating	Features	Weight	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Fan Type	Termination Leads Count	Termination Type	Termination	Voltage - Rated	Operating Temperature (Max)	Operating Temperature (Min)	Bearing Type	Width	Noise	RPM	Approval Agency	Air Flow	Static Pressure	Power (Watts)	Lifetime
Sanyo Denki America Inc. 9HV0412P3K009	10.8 VDC	12.6 VDC	Plastic	Plastic	1.52 A	Locked Rotor Protection PWM Control Speed Sensor (Tach)	0.133 lb	40 mm	Square	40 mm	Tubeaxial	4 leads	Position Rectangular Connector	4 Position Rectangular Connector	12 VAC	60 °C	-20 °C	Ball	28 mm	65 dB	25000 RPM
Sanyo Denki America Inc. 9HV0412P3K001	10.8 VDC	12.6 VDC	Plastic	Aluminum	1.52 A	PWM Control Speed Sensor (Tach)	0.133 lb	40 mm	Square	40 mm	Tubeaxial	4 leads	Wire Leads	4 Wire Leads	12 VAC	60 °C	-20 °C	Ball	28 mm	65 dB	25000 RPM	CSA TUV UL	29.3 CFM	4.42 in H2O	18.3 W	40000 Hrs
