Part	Screw Thread	Housing Material	Operating Temperature (Min)	Operating Temperature (Max)	Screw Plating	Screw Material	Torque - Screw	Clamp Material	Clamp Plating	Positions Per Level	Color	Pitch	Mounting Type	Current	Number of Levels	Voltage	Mating Orientation	Features	Wire Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)
McGill Microwave Systems VJ0801500000G	M3	Thermoplastic	-40 °C	115 °C	Zinc Plated	Steel	0.4 Nm	Brass	Nickel Plated	8	Green	0.197 in	Through Hole	20 A	1	300 V	Vertical with Board	Interlocking (Side)	Rising Cage Clamp Screw	12 AWG	30 AWG
McGill Microwave Systems VJ0541550000G	M3	Thermoplastic	-40 °C	115 °C	Zinc Plated	Steel	0.4 Nm	Brass	Nickel Plated	5	Green	0.295 in	Through Hole	20 A	1	300 V	Horizontal with Board	Interlocking (Side)	Rising Cage Clamp Screw	12 AWG	30 AWG
McGill Microwave Systems VJ1121520000G	M3	Thermoplastic	-40 °C	115 °C	Zinc Plated	Steel	0.4 Nm	Brass	Nickel Plated	11	Green	5.08 mm	Through Hole	20 A	1	300 V	Horizontal with Board	Interlocking (Side)	Rising Cage Clamp Screw	12 AWG	30 AWG
McGill Microwave Systems VJ1721550000G	M3	Thermoplastic	-40 °C	115 °C	Zinc Plated	Steel	0.4 Nm	Brass	Nickel Plated	17	Green	5.08 mm	Through Hole	20 A	1	300 V	Horizontal with Board	Interlocking (Side)	Rising Cage Clamp Screw	12 AWG	30 AWG
McGill Microwave Systems VJ1141520000G	M3	Thermoplastic	-40 °C	115 °C	Zinc Plated	Steel	0.4 Nm	Brass	Nickel Plated	11	Green	0.295 in	Through Hole	20 A	1	300 V	Horizontal with Board	Interlocking (Side)	Rising Cage Clamp Screw	12 AWG	30 AWG
McGill Microwave Systems VJ1421550000G	M3	Thermoplastic	-40 °C	115 °C	Zinc Plated	Steel	0.4 Nm	Brass	Nickel Plated	14	Green	5.08 mm	Through Hole	20 A	1	300 V	Horizontal with Board	Interlocking (Side)	Rising Cage Clamp Screw	12 AWG	30 AWG
McGill Microwave Systems VJ0401530000G	M3	Thermoplastic	-40 °C	115 °C	Zinc Plated	Steel	0.4 Nm	Brass	Nickel Plated	4	Green	0.197 in	Through Hole	20 A	1	300 V	Vertical with Board	Interlocking (Side)	Rising Cage Clamp Screw	12 AWG	30 AWG
McGill Microwave Systems VJ0901550000G	M3	Thermoplastic	-40 °C	115 °C	Zinc Plated	Steel	0.4 Nm	Brass	Nickel Plated	9	Green	0.197 in	Through Hole	20 A	1	300 V	Horizontal with Board	Interlocking (Side)	Rising Cage Clamp Screw	12 AWG	30 AWG
McGill Microwave Systems VJ1821550000G										18	Green	5.08 mm	Through Hole	20 A	1	300 V	Horizontal with Board	Interlocking (Side)	Rising Cage Clamp Screw	12 AWG	30 AWG
McGill Microwave Systems VJ1921530000G	M3	Thermoplastic	-40 °C	115 °C	Zinc Plated	Steel	0.4 Nm	Brass	Nickel Plated	19	Green	5.08 mm	Through Hole	20 A	1	300 V	Vertical with Board	Interlocking (Side)	Rising Cage Clamp Screw	12 AWG	30 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

VI.pdf

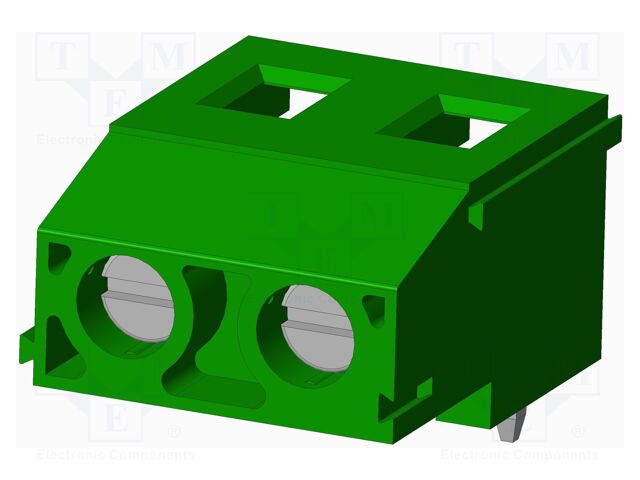

VJ0240500000G | Datasheet
