vj Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

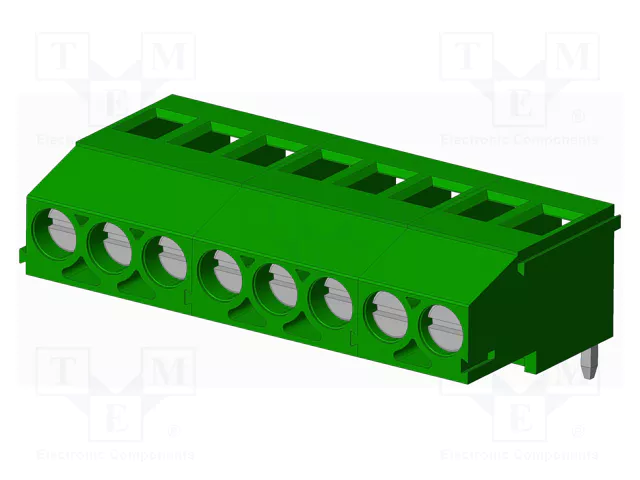

CONNECTOR: PCB TERMINAL BLOCK; TERMINAL; VJ; 20A; PIN: 8; STRAIGHT
| Part | Screw Thread | Housing Material | Operating Temperature (Min) | Operating Temperature (Max) | Screw Plating | Screw Material | Torque - Screw | Clamp Material | Clamp Plating | Positions Per Level | Color | Pitch | Mounting Type | Current | Number of Levels | Voltage | Mating Orientation | Features | Wire Termination | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | M3 | Thermoplastic | -40 °C | 115 °C | Zinc Plated | Steel | 0.4 Nm | Brass | Nickel Plated | 8 | Green | 0.197 in | Through Hole | 20 A | 1 | 300 V | Vertical with Board | Interlocking (Side) | Rising Cage Clamp Screw | 12 AWG | 30 AWG |
 McGill Microwave Systems | M3 | Thermoplastic | -40 °C | 115 °C | Zinc Plated | Steel | 0.4 Nm | Brass | Nickel Plated | 5 | Green | 0.295 in | Through Hole | 20 A | 1 | 300 V | Horizontal with Board | Interlocking (Side) | Rising Cage Clamp Screw | 12 AWG | 30 AWG |
McGill Microwave Systems | M3 | Thermoplastic | -40 °C | 115 °C | Zinc Plated | Steel | 0.4 Nm | Brass | Nickel Plated | 11 | Green | 5.08 mm | Through Hole | 20 A | 1 | 300 V | Horizontal with Board | Interlocking (Side) | Rising Cage Clamp Screw | 12 AWG | 30 AWG |
McGill Microwave Systems | M3 | Thermoplastic | -40 °C | 115 °C | Zinc Plated | Steel | 0.4 Nm | Brass | Nickel Plated | 17 | Green | 5.08 mm | Through Hole | 20 A | 1 | 300 V | Horizontal with Board | Interlocking (Side) | Rising Cage Clamp Screw | 12 AWG | 30 AWG |
 McGill Microwave Systems | M3 | Thermoplastic | -40 °C | 115 °C | Zinc Plated | Steel | 0.4 Nm | Brass | Nickel Plated | 11 | Green | 0.295 in | Through Hole | 20 A | 1 | 300 V | Horizontal with Board | Interlocking (Side) | Rising Cage Clamp Screw | 12 AWG | 30 AWG |
McGill Microwave Systems | M3 | Thermoplastic | -40 °C | 115 °C | Zinc Plated | Steel | 0.4 Nm | Brass | Nickel Plated | 14 | Green | 5.08 mm | Through Hole | 20 A | 1 | 300 V | Horizontal with Board | Interlocking (Side) | Rising Cage Clamp Screw | 12 AWG | 30 AWG |
McGill Microwave Systems | M3 | Thermoplastic | -40 °C | 115 °C | Zinc Plated | Steel | 0.4 Nm | Brass | Nickel Plated | 4 | Green | 0.197 in | Through Hole | 20 A | 1 | 300 V | Vertical with Board | Interlocking (Side) | Rising Cage Clamp Screw | 12 AWG | 30 AWG |
 McGill Microwave Systems | M3 | Thermoplastic | -40 °C | 115 °C | Zinc Plated | Steel | 0.4 Nm | Brass | Nickel Plated | 9 | Green | 0.197 in | Through Hole | 20 A | 1 | 300 V | Horizontal with Board | Interlocking (Side) | Rising Cage Clamp Screw | 12 AWG | 30 AWG |
McGill Microwave Systems | 18 | Green | 5.08 mm | Through Hole | 20 A | 1 | 300 V | Horizontal with Board | Interlocking (Side) | Rising Cage Clamp Screw | 12 AWG | 30 AWG | |||||||||
 McGill Microwave Systems | M3 | Thermoplastic | -40 °C | 115 °C | Zinc Plated | Steel | 0.4 Nm | Brass | Nickel Plated | 19 | Green | 5.08 mm | Through Hole | 20 A | 1 | 300 V | Vertical with Board | Interlocking (Side) | Rising Cage Clamp Screw | 12 AWG | 30 AWG |
