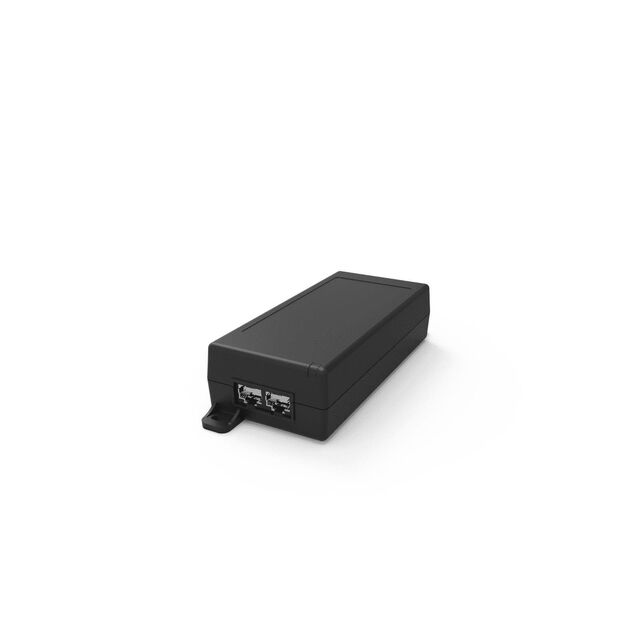

POE60U-1BT-X-R

Active

Phihong USA

IEEE802.3BT - POE DESKTOP C14 10

Search across all available documentation for this part.

Active

Phihong USA

IEEE802.3BT - POE DESKTOP C14 10

Technical Specifications

Parameters and characteristics for this part

Part	Number of Ports	Voltage - Output	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Output	Features	Standard Number	Compliance	Type	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Power (Watts) - Per Port	Efficiency	Output Connector	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Input Connector	Efficiency	Data Rate
Phihong USA POE60U-1BT-X-R	1	56 V	-10 °C	40 °C	Desktop	1.07 A	OCP OVP SCP	60950-1	IEEE802.3bt	Midspan Injector	90 VAC	264 VAC	cULus IEC	60 W	Level VI	RJ45 (Data Power)	65 mm	5.51 "	2.56 "	1.42 in	36 mm	140 mm	IEC 320-C14 (Power) RJ45 (Data)
Phihong USA POE60U-1BTE-R	1	56 V	-10 °C	40 °C	Desktop	1.07 A	OCP OVP SCP	60950-1	IEEE802.3bt	Midspan Injector	90 VAC	264 VAC	cULus IEC	60 W	Level VI	RJ45 (Data Power)	65 mm	5.51 "	2.56 "	1.42 in	36 mm	140 mm	IEC 320-C14 (Power) RJ45 (Data)
Phihong USA POE60U-560E-R	1	56 V	-10 °C	60 °C	Desktop	1.07 A	OCP OVP SCP	60950-1		Midspan Injector	90 VAC	264 VAC	cULus IEC	60 W		RJ45 (Data Power)	65 mm	5.51 "	2.56 "	1.42 in	36 mm	140 mm	IEC 320-C14 (Power) RJ45 (Data)	80 %	10 Mbps 100 Mbps 1000 Mbps
Phihong USA POE60U-1BT	1	56 V	-10 °C	40 °C	Desktop	1.07 A	OCP OVP SCP		IEEE802.3bt	Midspan Injector	90 VAC	264 VAC	CE cULus	60 W		RJ45 (Data Power)	2.56 in 65 mm				1.42 " 36 mm	6.43 in 163.2 mm	IEC 320-C14 (Power) RJ45 (Data)	75 %
Phihong USA POE60U-560-X-R	1	56 V	-10 °C	60 °C	Desktop	1.07 A	OCP OVP SCP			Midspan Injector	90 VAC	264 VAC	CE cULus	60 W	Level VI	RJ45 (Data Power)	65 mm	5.51 "	2.56 "	1.42 in	36 mm	140 mm	IEC 320-C14 (Power) RJ45 (Data)		10 Gbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

56V Power Over Ethernet (POE) 1 Port Midspan Injector Data Rate
