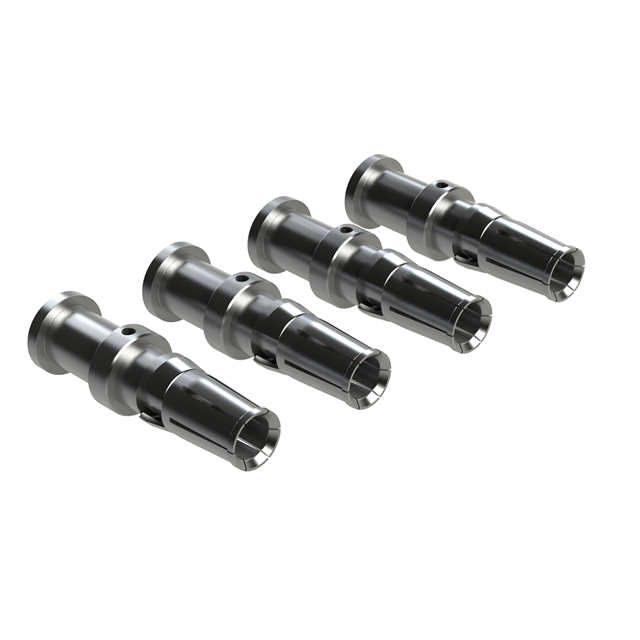

MS10A23S-25

Active

Amphenol Sine Systems Corp

3.6MM (1.5-2.5MM) FEMALE CONTACT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

3.6MM (1.5-2.5MM) FEMALE CONTACT

Technical Specifications

Parameters and characteristics for this part

Part	Type	Contact Material	Contact Size	Contact Termination	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge [Max]	Wire Gauge [Min]	Pin or Socket	Termination Finish
Amphenol Sine Systems Corp MS10B12E05G15	Machined	Copper Alloy	2.5 mm	Crimp	Socket	15 µin	0.38 µm	Gold
Amphenol Sine Systems Corp MS10A23S-25	Machined Signal	Copper Alloy	8	Crimp	Socket			Silver	14 AWG	16 AWG	1.5 mm²	2.5 mm²
Amphenol Sine Systems Corp MS10B23G10	Machined			Crimp		10 Áin	0.25 Ám	Gold					12 AWG	10 AWG	Socket
Amphenol Sine Systems Corp MS10A23F-10
Amphenol Sine Systems Corp MS10B23S	Machined			Crimp				Silver					12 AWG	10 AWG	Socket
Amphenol Sine Systems Corp MS10B23G5	Machined			Crimp		5 µin	0.127 µm	Gold					12 AWG	10 AWG	Socket
Amphenol Sine Systems Corp MS10B23T	Machined			Crimp				Tin					12 AWG	10 AWG	Socket
Amphenol Sine Systems Corp MS10A23S	Machined Signal	Copper Alloy	8	Crimp	Socket			Silver	10 AWG	12 AWG	3 mm²	6 mm²				Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact 14-16 AWG Size 8 Crimp Silver
