NA1-11-C5
ObsoletePanasonic Industrial Automation Sales
SENSOR CROSS-BEAM 1M NPN OPEN CL
NA1-11-C5
ObsoletePanasonic Industrial Automation Sales
SENSOR CROSS-BEAM 1M NPN OPEN CL
Description
General part information
NA1-11 Series

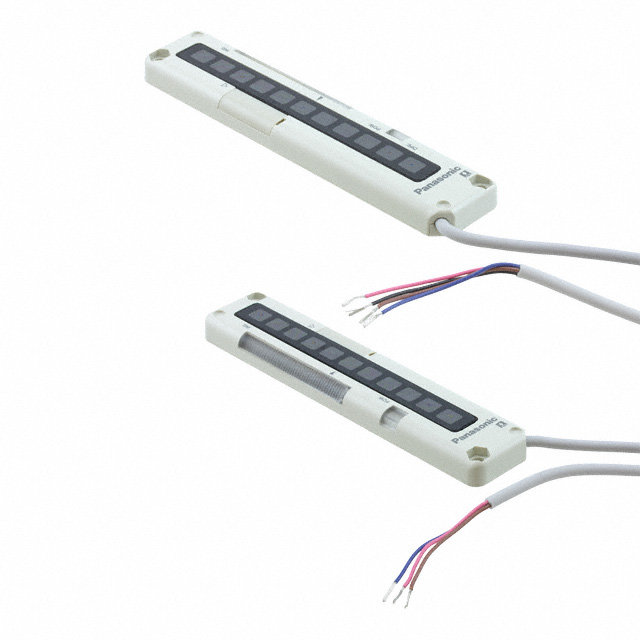

Through-Beam Optical Sensor 39.37" (1m) NPN - Open Collector
Technical Specifications
Parameters and characteristics for this part
| Specification | NA1-11-C5 |
|---|---|
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP62 |
| Light Source | Infrared |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Output Configuration | NPN - Open Collector |
| Response Time | 5 ms |
| Sensing Distance | 39.37 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
