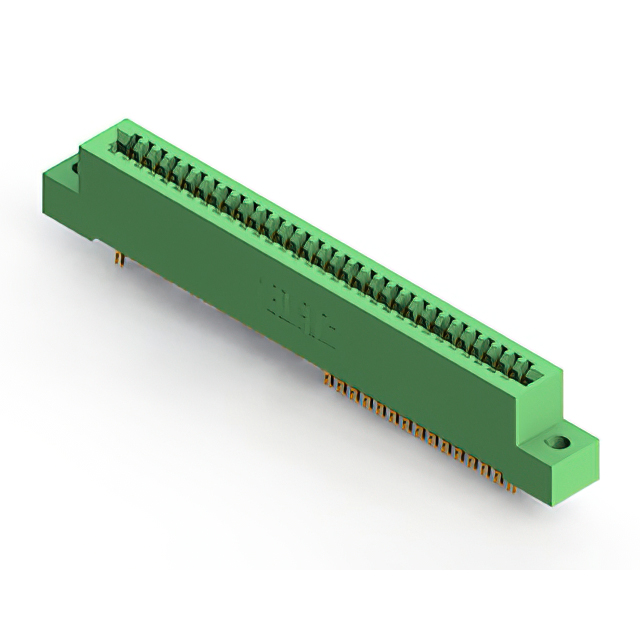

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 62 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
342-062-555-202
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 62 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-062-555-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 62 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
342-062 Series
| Part | Number of Rows | Material - Insulation | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Mounting Type | Gender | Termination | Card Type | Contact Material | Color | Termination Rows | Number of Positions/Bay/Row [custom] | Number of Positions | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | Through Hole | Female | Wire Wrap | Non Specified - Dual Edge | Copper Alloy | Green | 2 | 31 | 62 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 10 Áin | 0.25 Ám | |
EDAC Inc. | 2 | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Gold | Through Hole | Female | Wire Wrap | Non Specified - Dual Edge | Copper Alloy | Green | 2 | 31 | 62 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 10 Áin | 0.25 Ám | |
EDAC Inc. | 2 | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | Through Hole | Female | Solder | Non Specified - Dual Edge | Copper Alloy | Green | 2 | 31 | 62 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 10 Áin | 0.25 Ám | |
EDAC Inc. | 2 | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Board Edge Straddle Mount | Female | Solder | Non Specified - Dual Edge | Copper Alloy | Green | 2 | 31 | 62 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 10 Áin | 0.25 Ám | Card Extender | ||
EDAC Inc. | 2 | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Gold | Through Hole | Female | Wire Wrap | Non Specified - Dual Edge | Copper Alloy | Green | 2 | 31 | 62 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 2 | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Gold | Through Hole | Female | Wire Wrap | Non Specified - Dual Edge | Copper Alloy | Green | 2 | 31 | 62 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 10 Áin | 0.25 Ám | |
EDAC Inc. | 2 | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Through Hole | Female | Solder | Non Specified - Dual Edge | Copper Alloy | Green | 2 | 31 | 62 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 2 | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Gold | Board Edge Straddle Mount | Female | Solder Eyelet(s) | Non Specified - Dual Edge | Copper Alloy | Green | 2 | 31 | 62 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 10 Áin | 0.25 Ám | Card Extender |
EDAC Inc. | 2 | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | Through Hole | Female | Wire Wrap | Non Specified - Dual Edge | Copper Alloy | Green | 2 | 31 | 62 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 10 Áin | 0.25 Ám | |
EDAC Inc. | 2 | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Gold | Through Hole | Female | Wire Wrap | Non Specified - Dual Edge | Copper Alloy | Green | 2 | 31 | 62 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
342-062 Series
62 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
