90HBW05PT

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Current Rating (Amps)	Mechanical Life	Washable	Body Material	Circuit	Contact Finish	Contact Material	Actuator Level	Operating Temperature [Max]	Operating Temperature [Min]	Features	Length [x]	Length [x]	Termination Style	Mounting Type	Electrical Life	Voltage Rating	Actuator Type	Pitch [x]	Pitch	Pitch [x]
Grayhill Inc. 90HBW05PT	25 mA	2000 Cycles		Thermoplastic	SPST	Gold	Copper Alloy	Flush, Recessed	85 °C	-40 °C	Tape Seal	14.48 mm	0.57 in	Gull Wing	Surface Mount	2000 Steps	24 VDC	Slide (Standard)	0.1 in	Full	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

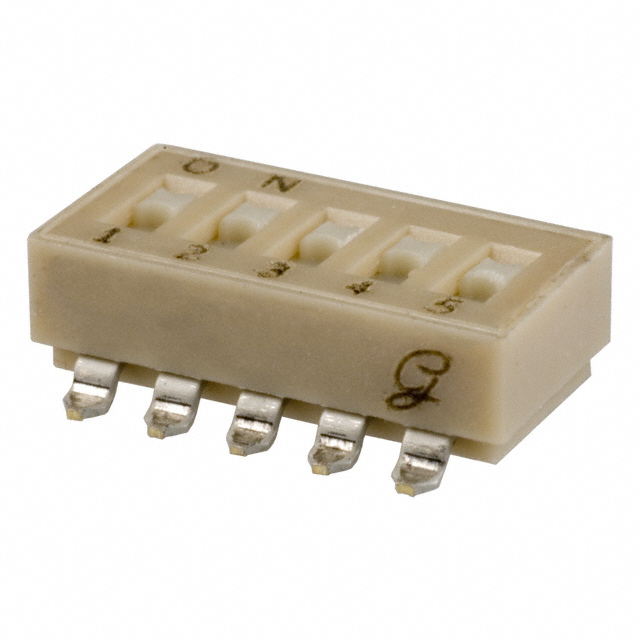

Dip Switch SPST 5 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
