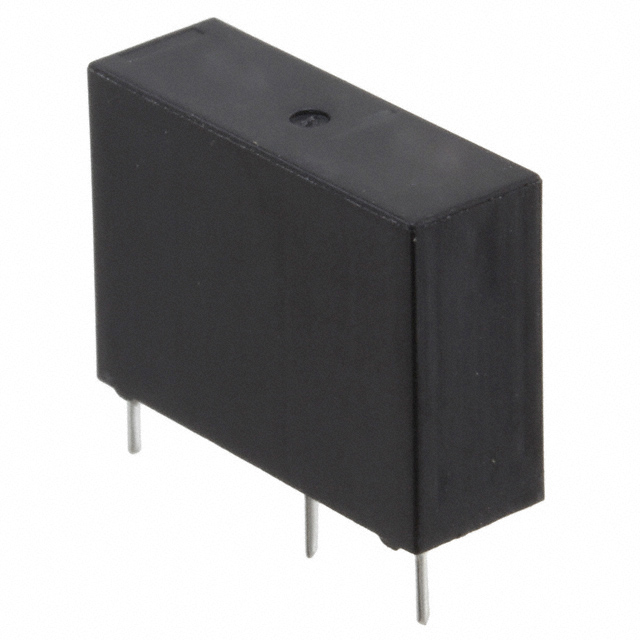

PCJ-112D3M,301
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 3A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PCJ-112D3M,301
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 3A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PCJ-112D3M,301 |
|---|---|
| Approval Agency | CQC, CSA, VDE, UR |
| Coil Current | 16.7 mA |
| Coil Resistance | 720 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 3 A |
| Load - Max Switching | 750 VA, 90 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 4 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PCJ-112 Series
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
