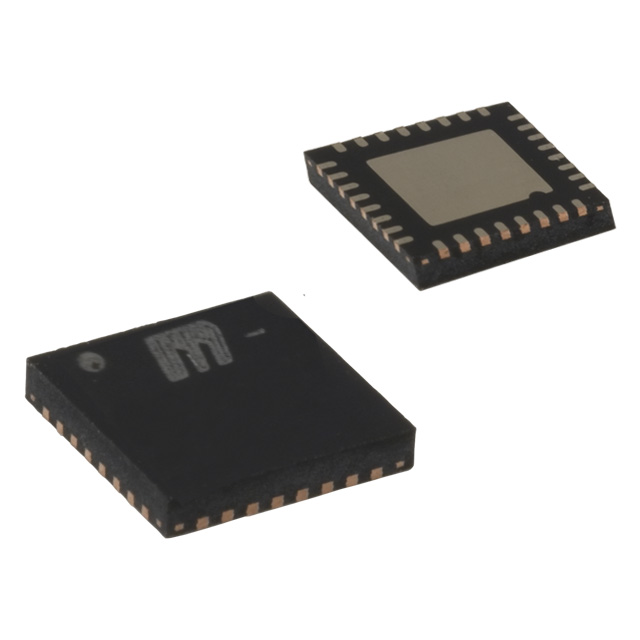

SY89856UMG-TR
ActiveCLOCK FANOUT BUFFER 6-OUT 2-IN 1:6 32-PIN QFN EP T/R
Deep-Dive with AI
Search across all available documentation for this part.
SY89856UMG-TR
ActiveCLOCK FANOUT BUFFER 6-OUT 2-IN 1:6 32-PIN QFN EP T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SY89856UMG-TR | SY89856 Series |
|---|---|---|
| Differential - Input:Output | - | True |
| Differential - Input:Output | - | True |
| Frequency - Max | - | 3 GHz |
| Input | - | PECL, LVDS, CML |
| Mounting Type | - | Surface Mount |
| null | - | |
| Number of Circuits | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Output | - | LVPECL |
| Package / Case | - | 32-VFQFN Exposed Pad |
| Ratio - Input:Output | - | 6 |
| Ratio - Input:Output | - | 2 |
| Supplier Device Package | - | 32-QFN (5x5) |
| Type | - | Fanout Buffer (Distribution), Multiplexer |
| Voltage - Supply | - | 3.6 V |
| Voltage - Supply | - | 2.375 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 5.95 | |
| Microchip Direct | T/R | 1 | $ 7.85 | |
| 25 | $ 6.55 | |||
| 100 | $ 5.95 | |||
| 1000 | $ 5.75 | |||
| 5000 | $ 5.69 | |||
SY89856 Series
2.5V/3.3V LOW POWER 1:6 LVPECL FANOUT WITH 2:1 MUX INPUT AND INTERNAL INPUT TERM 32 VQFN 5X5X0.9MM TUBE ROHS COMPLIANT: YES
| Part | Frequency - Max [Max] | Ratio - Input:Output [custom] | Ratio - Input:Output [custom] | Number of Circuits | Voltage - Supply [Max] | Voltage - Supply [Min] | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Type | Mounting Type | Package / Case | Supplier Device Package | Output | Operating Temperature [Max] | Operating Temperature [Min] | Input |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology SY89856UMG | ||||||||||||||||
Microchip Technology SY89856UMG-TR | 3 GHz | 6 | 2 | 1 | 3.6 V | 2.375 V | Fanout Buffer (Distribution), Multiplexer | Surface Mount | 32-VFQFN Exposed Pad | 32-QFN (5x5) | LVPECL | 85 °C | -40 °C | CML, LVDS, PECL | ||
Microchip Technology SY89856UMG | 3 GHz | 6 | 2 | 1 | 3.6 V | 2.375 V | Fanout Buffer (Distribution), Multiplexer | Surface Mount | 32-VFQFN Exposed Pad | 32-QFN (5x5) | LVPECL | 85 °C | -40 °C | CML, LVDS, PECL | ||
Microchip Technology SY89856UMG-TR | ||||||||||||||||
Microchip Technology SY89856UMG | ||||||||||||||||
Microchip Technology SY89856UMG |
Description
General part information
SY89856 Series
The SY89856U is a 2.5V/3.3V precision, high-speed, 1:6 fanout capable of handling clocks up to 2.0GHz. A differential 2:1 MUX input is included for redundant clock switchover applications.The differential input includes Micrel's unique, 3-pin input termination architecture that allows the device to interface to any differential signal (AC- or DC-coupled) as small as 100mV (200mVpp) without any level shifting or termination resistor networks in the signal path. The outputs are LVPECL (100k, temperature compensated), with extremely fast rise/fall times guaranteed to be less than 200ps.The SY89856U operates from a 2.5V ±5% supply or a 3.3V ±10% supply and is guaranteed over the full industrial temperature range of -40°C to +85°C. The SY89856U is part of Micrel's high-speed, Precision Edge® product line.
