3122-18-1-0500-006-1-TS

Active

CnC Tech, LLC

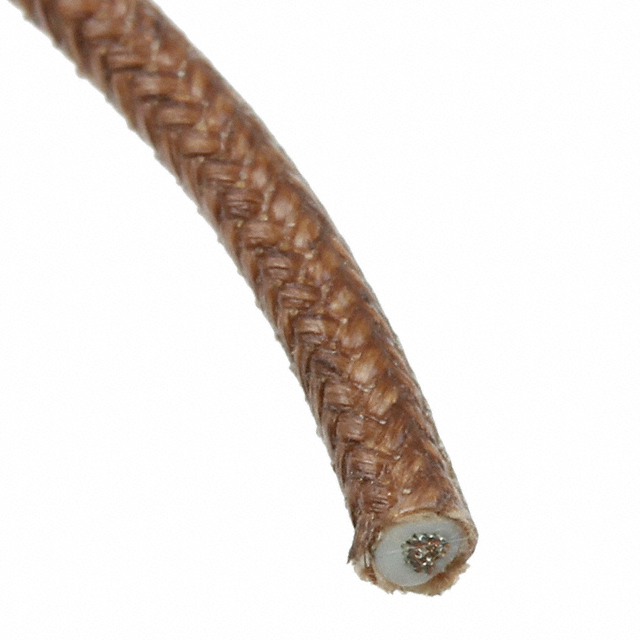

HOOK-UP STRND 18AWG 300V BRN 25'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet prior to DC 22/03 Datasheet

3122-18-1-0500-006-1-TS

Active

CnC Tech, LLC

HOOK-UP STRND 18AWG 300V BRN 25'

Deep-Dive with AI

DocumentsDatasheet prior to DC 22/03 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3122-18-1-0500-006-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	0.0157 in
Conductor Strand [custom]	7
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.095 in
Jacket (Insulation) Diameter [diameter]	2.41 mm
Jacket (Insulation) Material	Silicone Rubber, Fiberglass
Jacket (Insulation) Thickness	0.38 mm
Jacket (Insulation) Thickness	0.015 in
Jacket Color	Brown
Length	15.24 m
Length [x]	25 ft, 50 ft, 100 ft
Length [x]	7.62 m, 30.5 m
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-50 °C
Voltage	300 V
Wire Gauge	18 AWG

3122-18 Series

Part	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Length	Length [x]	Wire Gauge	Jacket (Insulation) Material	Length [x]
CnC Tech, LLC 3122-18-1-0500-001-1-TS	Oil Resistant	0.38 mm	0.015 in	Hook-Up	300 V	0.0157 in	7	0.095 in	2.41 mm	Black	-50 °C	200 °C	Copper Tinned	15.24 m	50 ft 100 ft	18 AWG	Fiberglass Silicone Rubber	30.5 m
CnC Tech, LLC 3122-18-1-0500-006-1-TS	Oil Resistant	0.38 mm	0.015 in	Hook-Up	300 V	0.0157 in	7	0.095 in	2.41 mm	Brown	-50 °C	200 °C	Copper Tinned	15.24 m	25 ft 50 ft 100 ft	18 AWG	Fiberglass Silicone Rubber	7.62 m 30.5 m
CnC Tech, LLC 3122-18-1-0500-002-1-TS	Oil Resistant	0.38 mm	0.015 in	Hook-Up	300 V	0.0157 in	7	0.095 in	2.41 mm		-50 °C	200 °C	Copper Tinned	15.24 m	25 ft 50 ft 100 ft 500 '	18 AWG	Fiberglass Silicone Rubber	7.62 m 30.5 m 152.4 m
CnC Tech, LLC 3122-18-1-0500-004-1-TS	Oil Resistant	0.38 mm	0.015 in	Hook-Up	300 V	0.0157 in	7	0.095 in	2.41 mm	Red	-50 °C	200 °C	Copper Tinned	15.24 m	50 ft 100 ft 500 '	18 AWG	Fiberglass Silicone Rubber	30.5 m 152.4 m
CnC Tech, LLC 3122-18-1-0500-007-1-TS	Oil Resistant	0.38 mm	0.015 in	Hook-Up	300 V	0.0157 in	7	0.095 in	2.41 mm	Green	-50 °C	200 °C	Copper Tinned	15.24 m	25 ft 50 ft 100 ft 500 '	18 AWG	Fiberglass Silicone Rubber	7.62 m 30.5 m 152.4 m
CnC Tech, LLC 3122-18-1-0500-005-1-TS	Oil Resistant	0.38 mm	0.015 in	Hook-Up	300 V	0.0157 in	7	0.095 in	2.41 mm	Blue	-50 °C	200 °C	Copper Tinned	15.24 m	25 ft 50 ft 100 ft 500 '	18 AWG	Fiberglass Silicone Rubber	7.62 m 30.5 m 152.4 m
CnC Tech, LLC 3122-18-1-0500-008-1-TS	Oil Resistant	0.38 mm	0.015 in	Hook-Up	300 V	0.0157 in	7	0.095 in	2.41 mm	Orange	-50 °C	200 °C	Copper Tinned	15.24 m	25 ft 50 ft 100 ft 500 '	18 AWG	Fiberglass Silicone Rubber	7.62 m 30.5 m 152.4 m
CnC Tech, LLC 3122-18-1-0500-011-1-TS	Oil Resistant	0.38 mm	0.015 in	Hook-Up	300 V	0.0157 in	7	0.095 in	2.41 mm	Yellow Green Stripe	-50 °C	200 °C	Copper Tinned	15.24 m	25 ft 50 ft 500 '	18 AWG	Fiberglass Silicone Rubber	7.62 m 152.4 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 25.31
		1	$ 13.47
		1	$ 45.53
		2	$ 12.79
		2	$ 24.15
		3	$ 42.61
		4	$ 12.20
		5	$ 22.60
		5	$ 40.66
		10	$ 38.71
		10	$ 21.57
		10	$ 11.46
		20	$ 20.54
		20	$ 10.85
		25	$ 36.28
		40	$ 10.39
		50	$ 34.33
		50	$ 19.24
		100	$ 32.87
		100	$ 18.21
		100	$ 9.72
		200	$ 9.25
		200	$ 17.44
		400	$ 8.78
		500	$ 16.79

Description

General part information

3122-18 Series

18 AWG Hook-Up Wire 7/0.0157" Brown 300V 25.00' (7.62m)

Documents

Technical documentation and resources

Datasheet prior to DC 22/03

Datasheet
