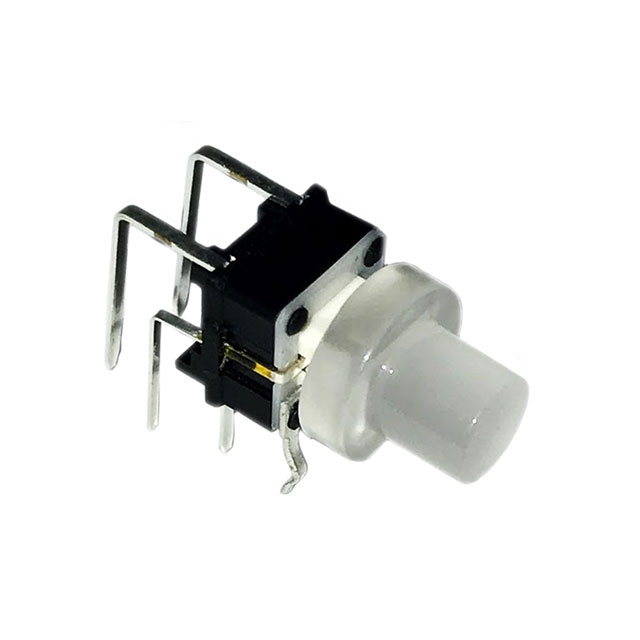

228ADS1AYFCN

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

228ADS1AYFCN

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.89
		10	$ 2.34
		25	$ 2.16
		80	$ 1.93
		230	$ 1.75
		440	$ 1.65
		945	$ 1.53
		2400	$ 1.39
		4900	$ 1.30

Description

General part information

228ADS1 Series

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	228ADS1AYFCN	228ADS1 Series

Actuator Length, Right Angle	-	2.6 mm
Actuator Orientation	Side Actuated	Side Actuated
Actuator Type	Round Button	Round Button, Plunger for Cap
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Illuminated	Illuminated
Illumination Type, Color	LED, Yellow	LED, Green, Yellow, Blue, Amber/White, Amber/Red, Green/Red, Red, White, Blue/Red, Amber
Illumination Voltage (Nominal)	-	1.7 - 3 VDC
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Outline [x]	7.2 mm	7.2 mm
Outline [y]	5.4 mm	5.4 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	PC Pin	PC Pin

228ADS1 Series

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Circuit	Switch Travel	Switch Function	Mechanical Life	Outline [x]	Outline [y]	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Mounting Type	Actuator Orientation	Illumination	Actuator Length, Right Angle	Contact Rating @ Voltage	Illumination Voltage (Nominal)	Termination Style
CTS Electrocomponents 228ADS1AGFCWC	SPST-NO	0.25 mm	Off-Mom	100000 Cycles	7.2 mm	5.4 mm	Round Button	70 °C	-25 °C	Green, LED	Through Hole, Right Angle	Side Actuated	Illuminated	2.6 mm	0.05 A, 12 VDC	1.9 VDC	PC Pin
CTS Electrocomponents 228ADS1AGFCRC	SPST-NO	0.25 mm	Off-Mom	100000 Cycles	7.2 mm	5.4 mm	Round Button	70 °C	-25 °C	Green, LED	Through Hole, Right Angle	Side Actuated	Illuminated	2.6 mm	0.05 A, 12 VDC	1.9 VDC	PC Pin
CTS Electrocomponents 228ADS1AYGFCWE	SPST-NO	0.25 mm	Off-Mom	100000 Cycles	7.2 mm	5.4 mm	Round Button	70 °C	-25 °C	Green, LED, Yellow	Through Hole, Right Angle	Side Actuated	Illuminated	2.6 mm	0.05 A, 12 VDC	1.9 VDC	PC Pin
CTS Electrocomponents 228ADS1AYFCN	SPST-NO	0.25 mm	Off-Mom	100000 Cycles	7.2 mm	5.4 mm	Round Button	70 °C	-25 °C	LED, Yellow	Through Hole, Right Angle	Side Actuated	Illuminated		0.05 A, 12 VDC		PC Pin
CTS Electrocomponents 228ADS1ABFCRE	SPST-NO	0.25 mm	Off-Mom	100000 Cycles	7.2 mm	5.4 mm	Round Button	70 °C	-25 °C	Blue, LED	Through Hole, Right Angle	Side Actuated	Illuminated	2.6 mm	0.05 A, 12 VDC	3 VDC	PC Pin
CTS Electrocomponents 228ADS1AAWFCMSA	SPST-NO	0.25 mm	Off-Mom	100000 Cycles	7.2 mm	5.4 mm	Round Button	70 °C	-25 °C	Amber/White, LED	Through Hole, Right Angle	Side Actuated	Illuminated	2.6 mm	0.05 A, 12 VDC		PC Pin
CTS Electrocomponents 228ADS1AAWFCMSB	SPST-NO	0.25 mm	Off-Mom	100000 Cycles	7.2 mm	5.4 mm	Round Button	70 °C	-25 °C	Amber/White, LED	Through Hole, Right Angle	Side Actuated	Illuminated	2.6 mm	0.05 A, 12 VDC		PC Pin
CTS Electrocomponents 228ADS1ABFCRD	SPST-NO	0.25 mm	Off-Mom	100000 Cycles	7.2 mm	5.4 mm	Round Button	70 °C	-25 °C	Blue, LED	Through Hole, Right Angle	Side Actuated	Illuminated	2.6 mm	0.05 A, 12 VDC	3 VDC	PC Pin
CTS Electrocomponents 228ADS1AYFCMBE	SPST-NO	0.25 mm	Off-Mom	100000 Cycles	7.2 mm	5.4 mm	Round Button	70 °C	-25 °C	LED, Yellow	Through Hole, Right Angle	Side Actuated	Illuminated	2.6 mm	0.05 A, 12 VDC	1.9 VDC	PC Pin
CTS Electrocomponents 228ADS1ARAFCMBE	SPST-NO	0.25 mm	Off-Mom	100000 Cycles	7.2 mm	5.4 mm	Round Button	70 °C	-25 °C	Amber/Red, LED	Through Hole, Right Angle	Side Actuated	Illuminated	2.6 mm	0.05 A, 12 VDC		PC Pin
