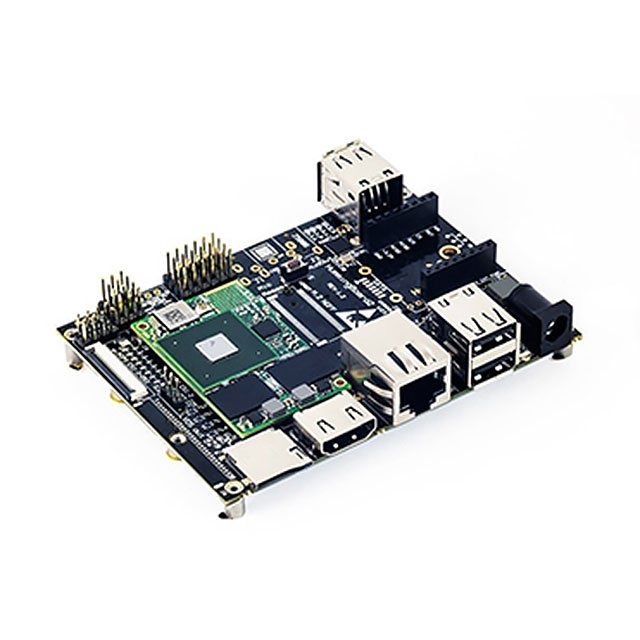

SRMX6DUWT1D01GE008G00AH

Obsolete

SolidRun LTD

SBC 1.0GHZ 2 CORE 1GB/8GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SRMX6DUWT1D01GE008G00AH

Obsolete

SolidRun LTD

SBC 1.0GHZ 2 CORE 1GB/8GB RAM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRMX6DUWT1D01GE008G00AH

Core Processor	ARM Cortex-A9, i.MX6Dual
Expansion Site/Bus	Bluetooth, Wi-Fi
Number of Cores	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
RAM Capacity/Installed	1 GB, 8 GB
Size / Dimension [x]	102.1 mm
Size / Dimension [x]	4.02 in
Size / Dimension [y]	69.08 mm
Size / Dimension [y]	2.72 in
Speed	1 GHz
Watchdog Timer	False

SRMX6DUWT1D01GE Series

Part	Number of Cores	Speed	Video Outputs	Expansion Site/Bus	Ethernet	Ethernet	Form Factor	Storage Interface	Operating Temperature [Max]	Operating Temperature [Min]	RAM Capacity/Installed	Core Processor	USB	Cooling Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
SolidRun LTD SRMX6DUWT1D01GE016V20I0	2	1 GHz	HDMI	Audio GPIO MIPI CSI mPCIe UART	10 100 1000	RJ45	SBC	eMMC microSD	85 °C	-40 °C	0 GB 1 GB	ARM Cortex-A9	USB 2.0 (4)
SolidRun LTD SRMX6DUWT1D01GE032E01IH	2	1 GHz	HDMI LVDS MIPI DSI	GPIO LVDS M.2 MIPI CSI MIPI DSI mPCIe UART	10 100 1000	RJ45	SBC	eMMC M.2 microSD	85 °C	-40 °C	0 GB 1 GB	ARM Cortex-A9	USB 2.0 (4)	Heat Sink	2.756 in	100 mm	70 mm	3.937 in
SolidRun LTD SRMX6DUWT1D01GE016E01CH	2	1 GHz	HDMI LVDS MIPI DSI	GPIO LVDS M.2 MIPI CSI MIPI DSI mPCIe UART	10 100 1000	RJ45	SBC	eMMC M.2 microSD	70 °C	0 °C	0 GB 1 GB	ARM Cortex-A9	USB 2.0 (4)	Heat Sink	2.756 in	100 mm	70 mm	3.937 in
SolidRun LTD SRMX6DUWT1D01GE000E01CH	2	1 GHz	HDMI LVDS MIPI DSI	GPIO LVDS M.2 MIPI CSI MIPI DSI mPCIe UART	10 100 1000	RJ45	SBC	eMMC M.2 microSD	70 °C	0 °C	0 GB 1 GB	ARM Cortex-A9	USB 2.0 (4)	Heat Sink	2.756 in	100 mm	70 mm	3.937 in
SolidRun LTD SRMX6DUWT1D01GE008G00AH	2	1 GHz		Bluetooth Wi-Fi					105 ░C	-40 °C	1 GB 8 GB	ARM Cortex-A9 i.MX6Dual			2.72 in	102.1 mm	69.08 mm	4.02 in
SolidRun LTD SRMX6DUWT1D01GE008V20I0	2	1 GHz	HDMI	Audio GPIO MIPI CSI mPCIe UART	10 100 1000	RJ45	SBC	eMMC microSD	85 °C	-40 °C	0 GB 1 GB	ARM Cortex-A9	USB 2.0 (4)
SolidRun LTD SRMX6DUWT1D01GE000G01IH	2	1 GHz	HDMI MIPI-DSI	GPIO MIPI CSI MIPI DSI mPCIe UART	10 100 1000	RJ45	SBC	eMMC microSD	85 °C	-40 °C	0 GB 1 GB	ARM Cortex-A9	USB 2.0 (4)	Heat Sink	2.756 in	100 mm	70 mm	3.937 in
SolidRun LTD SRMX6DUWT1D01GE016V20A0	2	1 GHz	HDMI	Audio GPIO MIPI CSI mPCIe UART	10 100 1000	RJ45	SBC	eMMC microSD	85 °C	-40 °C	0 GB 1 GB	ARM Cortex-A9	USB 2.0 (4)
SolidRun LTD SRMX6DUWT1D01GE128E01CE	2	1 GHz	HDMI LVDS MIPI DSI	GPIO LVDS M.2 MIPI CSI MIPI DSI mPCIe UART	10 100 1000	RJ45	SBC	eMMC M.2 microSD	70 °C	0 °C	0 GB 1 GB	ARM Cortex-A9	USB 2.0 (4)		2.756 in	100 mm	70 mm	3.937 in
SolidRun LTD SRMX6DUWT1D01GE128G01IH	2	1 GHz	HDMI MIPI-DSI	GPIO MIPI CSI MIPI DSI mPCIe UART	10 100 1000	RJ45	SBC	eMMC microSD	85 °C	-40 °C	0 GB 1 GB	ARM Cortex-A9	USB 2.0 (4)	Heat Sink	2.756 in	100 mm	70 mm	3.937 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SRMX6DUWT1D01GE Series

Single Board Computer 1GHz 2 Core 1GB/8GB RAM ARM Cortex-A9, i.MX6Dual

Documents

Technical documentation and resources
