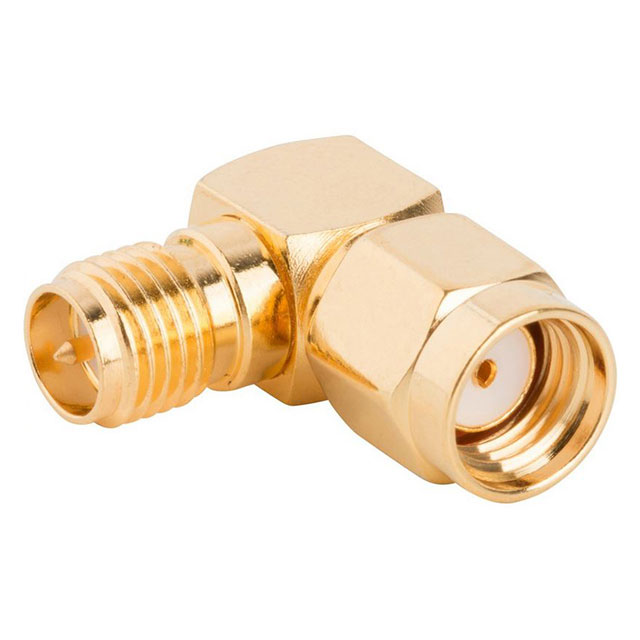

132172RP-RP

Active

Amphenol RF

CONN ADAPT PLUG-JACK RP-SMA

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT PLUG-JACK RP-SMA

Technical Specifications

Parameters and characteristics for this part

Specification	132172RP-RP

Adapter Series	RP-SMA to RP-SMA
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	RP-SMA Plug, Female Socket
Convert To (Adapter End)	RP-SMA Jack, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Right Angle

Part	Operating Temperature [Min]	Operating Temperature [Max]	Conversion Type	Center Contact Material	Body Material	Convert To (Adapter End)	Dielectric Material	Style	Center Contact Plating	Convert From (Adapter End)	Impedance	Mounting Type	Adapter Type	Adapter Series	Frequency - Max [Max]	Body Finish	Center Gender
Amphenol RF 132172RP-RP	-65 ░C	165 °C	Same Series	Beryllium Copper Brass	Brass	Male Pin RP-SMA Jack	Polytetrafluoroethylene (PTFE)	Right Angle	Gold	Female Socket RP-SMA Plug	50 Ohms	Free Hanging (In-Line) Right Angle	Plug to Jack	RP-SMA to RP-SMA	18 GHz	Gold
Amphenol RF 132172RP	-65 ░C	165 °C	Between Series	Beryllium Copper	Brass	Male Pin RP-SMA Jack	Polytetrafluoroethylene (PTFE)	Right Angle	Gold	SMA Plug Male Pin	50 Ohms	Free Hanging (In-Line) Right Angle	Plug to Jack	SMA to RP-SMA	18 GHz	Gold	Male to Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector RP-SMA Plug, Female Socket To RP-SMA Jack, Male Pin 50 Ohms
