N/MS3108B32-17S

Active

JAE Electronics

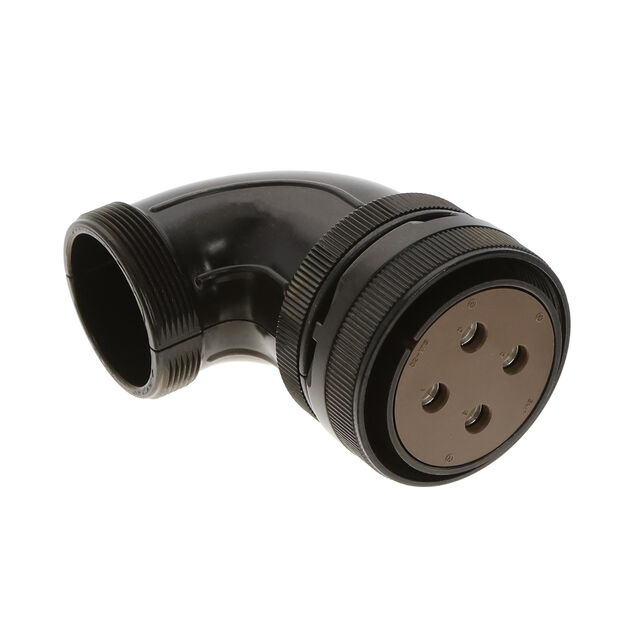

CONN PLUG FMALE 4P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

N/MS3108B32-17S

Active

JAE Electronics

CONN PLUG FMALE 4P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	N/MS3108B32-17S

Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	80 A
Features	Coupling Nut, Backshell
Insert Material	Synthetic Resin
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Aluminum Alloy
Shell Size - Insert	32-17
Voltage Rating	900 VAC

N/MS3108 Series

Part	Current Rating (Amps)	Contact Finish - Mating	Shell Material	Shell Size - Insert	Material Flammability Rating	Contact Material	Features	Shell Finish	Insert Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Orientation	Mounting Type	Voltage Rating	Primary Material	Number of Positions	Shell Size - Insert [Max]	Shell Size - Insert [Min]
JAE Electronics N/MS3108B18-11S	23 A	Silver	Aluminum Alloy	18-11	UL94 V-0	Copper Alloy	Backshell Coupling Nut	Zinc	Synthetic Resin	Black	-55 °C	125 °C	Female Sockets Plug	N	Free Hanging (In-Line) Right Angle	500 VAC	Metal
JAE Electronics N/MS3108B20-27S	13 A	Silver	Aluminum Alloy		UL94 V-0	Copper Alloy	Backshell Coupling Nut	Zinc	Synthetic Resin	Black	-55 °C	125 °C	Female Sockets Plug	N	Free Hanging (In-Line) Right Angle	500 VAC	Metal	14	27	20
JAE Electronics N/MS3108B32-17S	80 A	Silver	Aluminum Alloy	32-17	UL94 V-0	Copper Alloy	Backshell Coupling Nut	Zinc	Synthetic Resin	Black	-55 °C	125 °C	Female Sockets Plug	N	Free Hanging (In-Line) Right Angle	900 VAC	Metal	4
JAE Electronics N/MS3108B20-18S	13 A 23 A	Silver	Aluminum Alloy		UL94 V-0	Copper Alloy	Backshell Coupling Nut	Zinc	Synthetic Resin	Black	-55 °C	125 °C	Female Sockets Plug	N	Free Hanging (In-Line) Right Angle	500 VAC	Metal	9	18	20
JAE Electronics N/MS3108B20-17S	13 A 23 A	Silver	Aluminum Alloy		UL94 V-0	Copper Alloy	Backshell Coupling Nut	Zinc	Synthetic Resin	Black	-55 °C	125 °C	Female Sockets Plug	N	Free Hanging (In-Line) Right Angle	500 VAC	Metal	6	20	17
JAE Electronics N/MS3108B28-12P	13 A	Silver	Aluminum Alloy	28-12	UL94 V-0	Copper Alloy	Backshell Coupling Nut	Zinc	Synthetic Resin	Black	-55 °C	125 °C	Male Pins Plug	N	Free Hanging (In-Line) Right Angle	500 VAC	Metal	26
JAE Electronics N/MS3108B14S-7P	13 A	Silver	Aluminum Alloy	14S-7	UL94 V-0	Copper Alloy	Backshell Coupling Nut	Zinc	Synthetic Resin	Black	-55 °C	125 °C	Male Pins Plug	N	Free Hanging (In-Line) Right Angle	500 VAC	Metal
JAE Electronics N/MS3108B24-10S	46 A	Silver	Aluminum Alloy		UL94 V-0	Copper Alloy	Backshell Coupling Nut	Zinc	Synthetic Resin	Black	-55 °C	125 °C	Female Sockets Plug	N	Free Hanging (In-Line) Right Angle	500 VAC	Metal	7	10	24
JAE Electronics N/MS3108B20-4S	23 A	Silver	Aluminum Alloy	20-4	UL94 V-0	Copper Alloy	Backshell Coupling Nut	Zinc	Synthetic Resin	Black	-55 °C	125 °C	Female Sockets Plug	N	Free Hanging (In-Line) Right Angle	900 VAC	Metal	4
JAE Electronics N/MS3108B22-23S	23 A	Silver	Aluminum Alloy		UL94 V-0	Copper Alloy	Backshell Coupling Nut	Zinc	Synthetic Resin	Black	-55 °C	125 °C	Female Sockets Plug	N	Free Hanging (In-Line) Right Angle		Metal	8	23	22

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 185.88
		10	$ 172.24

Description

General part information

N/MS3108 Series

4 Position Circular Connector Plug, Female Sockets Solder Cup
