2269140

Active

Phoenix Contact

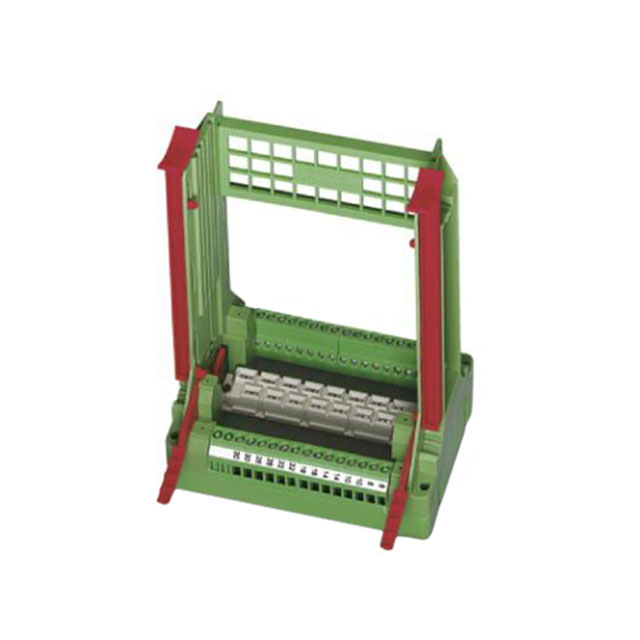

PLUG-IN CARD BLOCK 64POS GREEN

Search across all available documentation for this part.

Active

Phoenix Contact

PLUG-IN CARD BLOCK 64POS GREEN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Terminal Blocks, Screw Connection, 30 Pos, 2 Rows To Card Edge Connector, 15 Pos

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	2269140	SKBI Series

Convert From (Adapter End)	Terminal Blocks, Screw Connection, 30 Pos, 2 Rows	Screw Connection, Terminal Blocks, Terminal Blocks, Screw Connection, 30 Pos, 2 Rows, 2 Rows, 15 Pos, 32 Pos, 48 Pos, 3 Rows
Convert From (Adapter End)	-	2 - 64 Rows
Convert To (Adapter End)	Card Edge Connector	Card Edge Connector
Convert To (Adapter End)	15 Pos	15 - 64 Pos
Mounting Type	Board Mounted	Board Mounted
Wire Gauge [Max]	24 AWG	24 AWG
Wire Gauge [Min]	12 AWG	10 - 12 AWG

PLUG-IN CARD BLOCK 64POS 4A

Part	Convert From (Adapter End)	Convert From (Adapter End)	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Convert To (Adapter End)	Convert To (Adapter End)
Phoenix Contact 2264080	4 Rows, 64	Screw Connection, Terminal Blocks	12 AWG	24 AWG	Board Mounted	Card Edge Connector	64 Pos
Phoenix Contact 2269140		Terminal Blocks, Screw Connection, 30 Pos, 2 Rows	12 AWG	24 AWG	Board Mounted	Card Edge Connector	15 Pos
Phoenix Contact 2269153		15 Pos, 2 Rows, Screw Connection, Terminal Blocks	10 AWG	24 AWG	Board Mounted	Card Edge Connector	15 Pos
Phoenix Contact 2261096		2 Rows, 32 Pos, Screw Connection, Terminal Blocks	12 AWG	24 AWG	Board Mounted	Card Edge Connector	32 Pin
Phoenix Contact 2265034	4 Rows, 64	Screw Connection, Terminal Blocks	12 AWG	24 AWG	Board Mounted	Card Edge Connector	64 Pos
Phoenix Contact 2264093		3 Rows, 48 Pos, Screw Connection, Terminal Blocks	12 AWG	24 AWG	Board Mounted	Card Edge Connector	64 Pos
Phoenix Contact 2263036	4 Rows, 64	Screw Connection, Terminal Blocks	12 AWG	24 AWG	Board Mounted	Card Edge Connector	64 Pos
Phoenix Contact 2263117	4 Rows, 64	Screw Connection, Terminal Blocks	12 AWG	24 AWG	Board Mounted	Card Edge Connector	64 Pos
Phoenix Contact 2261038		2 Rows, 32 Pos, Screw Connection, Terminal Blocks	12 AWG	24 AWG	Board Mounted	Card Edge Connector	32 Pin
Phoenix Contact 2201519	2 Rows, 31 Pos	Screw Connection, Terminal Blocks	12 AWG	24 AWG	Board Mounted	Card Edge Connector	31 Pos
