D1031SH45TXPSA1

Active

Infineon Technologies

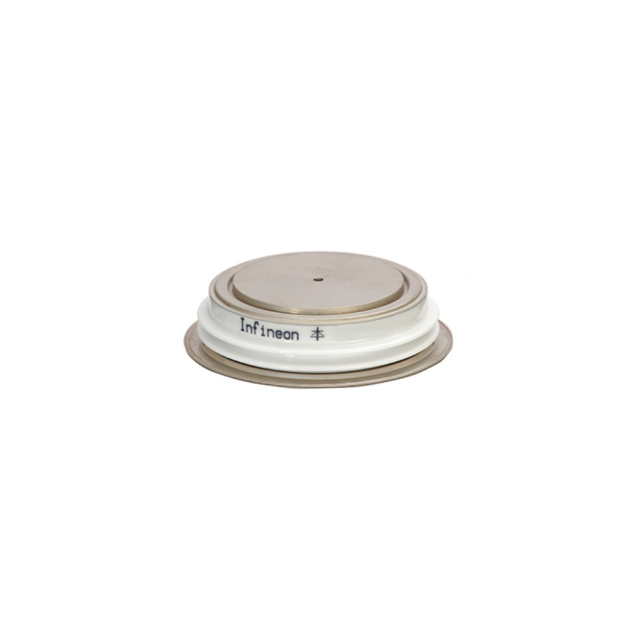

4500 V ULTRA-SOFT IGCT/IGBT FREEWHEELING DIODE CERAMIC DISCS WITH A 100 MM DIA AND A HEIGHT OF 26 MM

Search across all available documentation for this part.

Active

Infineon Technologies

4500 V ULTRA-SOFT IGCT/IGBT FREEWHEELING DIODE CERAMIC DISCS WITH A 100 MM DIA AND A HEIGHT OF 26 MM

Technical Specifications

Parameters and characteristics for this part

Specification	D1031SH45TXPSA1

Current - Average Rectified (Io)	1450 A
Current - Reverse Leakage @ Vr	100 mA
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	140 °C
Operating Temperature - Junction [Min]	0 °C
Package / Case	DO-200AD
Speed	Standard Recovery >500ns
Speed	200 mA
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	4500 V
Voltage - Forward (Vf) (Max) @ If	4.2 V

Part	Mounting Type	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Technology	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Speed	Speed	Package / Case
Infineon Technologies D1031SH45TXPSA1	Chassis Mount	1450 A	4.2 V	Standard	100 mA	4500 V	0 °C	140 °C	Standard Recovery >500ns	200 mA	DO-200AD

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2	$ 1094.38

General part information

The D1031SHIGCT-Diode discsare assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 100mm and a height of 26mm.
