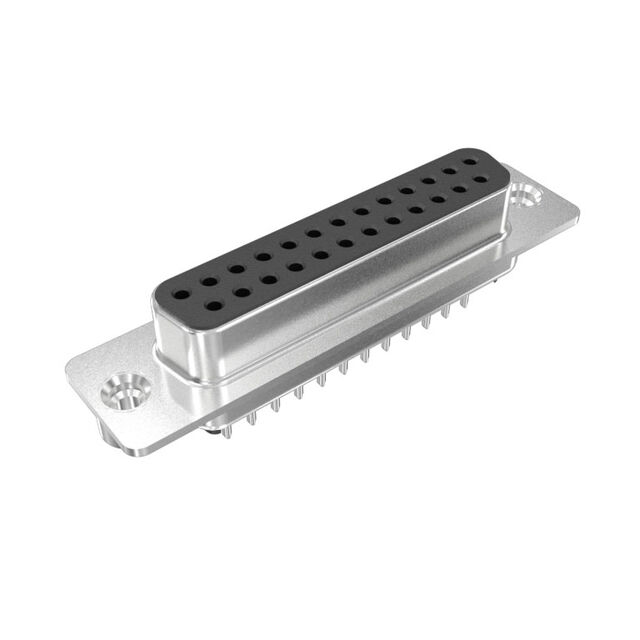

FCE17B25SE410

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 25POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FCE17B25SE410

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 25POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FCE17B25SE410

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Filter
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

FCE17B25 Series

Part	Termination	Mounting Type	Connector Type	Number of Rows	Connector Style	Features	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Color	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Current Rating (Amps)	Contact Finish	Contact Type	Contact Material	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Backset Spacing	Backset Spacing
Amphenol ICC (Commercial Products) FCE17B25PE250	Solder	Through Hole	Male Pins Plug	2	D-Sub	Filter Grounding Indents	B DB	3	Black	UL94 V-0	85 °C	-40 °C	Thermoplastic Glass Filled	5 A	Gold	Signal	Phosphor Bronze	Housing/Shell (Unthreaded)	15 µin	0.38 µm
Amphenol ICC (Commercial Products) FCE17B25PA650	Solder	Through Hole Right Angle	Male Pins Plug	2	D-Sub	Board Lock Filter Grounding Indents	B DB	3	Black	UL94 V-0	85 °C	-40 °C	Thermoplastic Glass Filled	5 A	Gold	Signal	Phosphor Bronze	Housing/Shell (M3)	15 µin	0.38 µm	8.08 mm	0.318 "
Amphenol ICC (Commercial Products) FCE17B25SB410	Solder	Through Hole Right Angle	Receptacle Female Sockets	2	D-Sub	Board Lock Filter	B DB	3	Black	UL94 V-0	85 °C	-40 °C	Thermoplastic Glass Filled	5 A	Gold	Signal	Phosphor Bronze	Housing/Shell (4-40)	15 µin	0.38 µm	10.29 mm	0.405 "
Amphenol ICC (Commercial Products) FCE17B25PC2EB	Solder	Through Hole Right Angle	Male Pins Plug	2	D-Sub	Filter Grounding Indents Mounting Brackets	B DB	3	Black	UL94 V-0	85 °C	-40 °C	Thermoplastic Glass Filled	5 A	Gold	Signal	Phosphor Bronze	Housing/Shell (Unthreaded)	15 µin	0.38 µm	14.99 mm	0.59 "
Amphenol ICC (Commercial Products) FCE17B25SA240	Solder	Through Hole Right Angle	Receptacle Female Sockets	2	D-Sub	Board Lock Filter	B DB	3	Black	UL94 V-0	85 °C	-40 °C	Thermoplastic Glass Filled	5 A	Gold	Signal	Phosphor Bronze	Housing/Shell (Unthreaded)	15 µin	0.38 µm	8.08 mm	0.318 "
Amphenol ICC (Commercial Products) FCE17-B25SA-450	Solder	Through Hole Right Angle	Receptacle Female Sockets	2	D-Sub	Board Lock Filter	B DB	3	Black	UL94 V-0	85 °C	-40 °C	Thermoplastic Glass Filled	5 A	Gold	Signal	Phosphor Bronze	Housing/Shell (4-40)	15 µin	0.38 µm	8.08 mm	0.318 "
Amphenol ICC (Commercial Products) FCE17B25SE410	Solder	Through Hole	Receptacle Female Sockets	2	D-Sub	Filter	B DB	3	Black	UL94 V-0	85 °C	-40 °C	Thermoplastic Glass Filled	5 A	Gold	Signal	Phosphor Bronze	4-40 Board Side	15 µin	0.38 µm
Amphenol ICC (Commercial Products) FCE17B25PE450	Solder	Through Hole	Male Pins Plug	2	D-Sub	Filter Grounding Indents	B DB	3	Black	UL94 V-0	85 °C	-40 °C	Thermoplastic Glass Filled	5 A	Gold	Signal	Phosphor Bronze	4-40 Board Side	15 µin	0.38 µm
Amphenol ICC (Commercial Products) FCE17-B25SM-250		Free Hanging (In-Line)	Receptacle Female Sockets	2	D-Sub	Filter	B DB	3	Black	UL94 V-0	85 °C	-40 °C	Thermoplastic Glass Filled	5 A	Gold	Signal	Phosphor Bronze	Housing/Shell (Unthreaded)	15 µin	0.38 µm
Amphenol ICC (Commercial Products) FCE17B25PC20B	Solder	Through Hole Right Angle	Male Pins Plug	2	D-Sub	Filter Grounding Indents Mounting Brackets	B DB	3	Black	UL94 V-0	85 °C	-40 °C	Thermoplastic Glass Filled	5 A	Gold	Signal	Phosphor Bronze	Housing/Shell (Unthreaded)	15 µin	0.38 µm	14.99 mm	0.59 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 32.60
		10	$ 28.54
		25	$ 27.31
		50	$ 26.43
		100	$ 25.55
		250	$ 24.14

Description

General part information

FCE17B25 Series

25 Position D-Sub Receptacle, Female Sockets Connector
