1326490-3

Active

TE Connectivity AMP Connectors

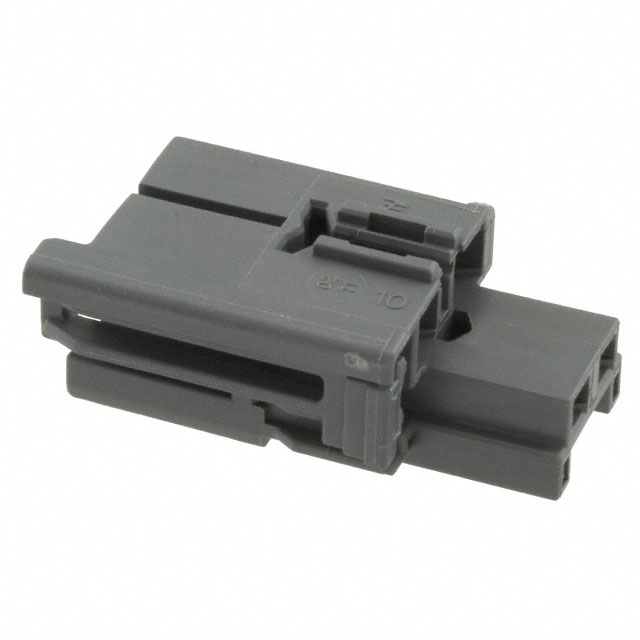

4P JPT/MT3 PLUG W/LATCH,GRAY

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

4P JPT/MT3 PLUG W/LATCH,GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	1326490-3

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Row Spacing	0.169 in
Row Spacing	4.3 mm

4P JPT/MT3 PLUG W/LATCH,GRAY

Part	Insulation Material	Mounting Type	Fastening Type	Row Spacing	Row Spacing	Number of Rows	Contact Type	Connector Type	Number of Positions	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Color
TE Connectivity AMP Connectors 1326490-3	Polyamide (PA66), Nylon 6/6, Glass Filled	Free Hanging (In-Line)	Push-Pull	0.169 in	4.3 mm	2	Female Socket	Receptacle	4	Crimp	125 °C	-40 °C	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Receptacle Gray
