EC2SA-24D12N

Active

Cincon Electronics Co. LTD

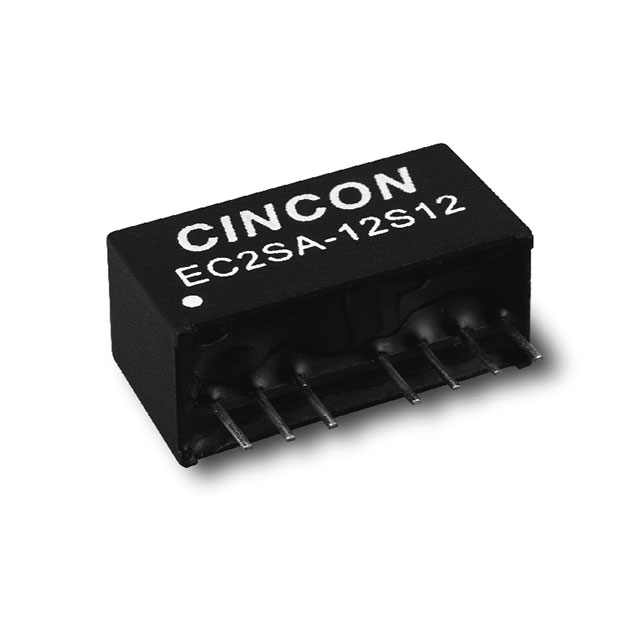

DC DC CONVERTER +/-12V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EC2SA-24D12N

Active

Cincon Electronics Co. LTD

DC DC CONVERTER +/-12V 2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EC2SA-24D12N

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max)	83 mA
Current - Output (Max)	83 mA
Efficiency	81 %
Features	UVLO, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-SIP Module
Package / Case	7 Leads
Power (Watts)	2 W
Size / Dimension [x]	21.8 mm
Size / Dimension [x]	0.86 in
Size / Dimension [y]	0.36 "
Size / Dimension [y]	9.2 mm
Size / Dimension [z]	0.44 "
Size / Dimension [z]	11.1 mm
Standard Number	60950-1
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

EC2SAN Series

Part	Efficiency	Approval Agency	Applications	Current - Output (Max) [Max]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Voltage - Input (Max) [Max]	Package / Case	Package / Case	Voltage - Output 1	Mounting Type	Number of Outputs	Type	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Isolation	Features	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Cincon Electronics Co. LTD EC2SA-12S33N	76 %	CE	ITE (Commercial)	500 mA	1.7 W	85 °C	-40 °C	60950-1	18 V	8-SIP Module	7 Leads	3.3 V	Through Hole	1	Isolated Module	9 V	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	1.5 kV	Remote On/Off SCP UVLO
Cincon Electronics Co. LTD EC2SA-24D05N	79 %	CE	ITE (Commercial)		2 W	85 °C	-40 °C	60950-1	36 V	8-SIP Module	7 Leads	5 V	Through Hole	2	Isolated Module	18 V	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	1.5 kV	Remote On/Off SCP UVLO	-5 V
Cincon Electronics Co. LTD EC2SA-24D12N	81 %	CE	ITE (Commercial)		2 W	85 °C	-40 °C	60950-1	36 V	8-SIP Module	7 Leads	12 V	Through Hole	2	Isolated Module	18 V	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	1.5 kV	Remote On/Off SCP UVLO	-12 V	83 mA	83 mA
Cincon Electronics Co. LTD EC2SA-48D05N	78 %	CE	ITE (Commercial)		2 W	85 °C	-40 °C	60950-1	75 V	8-SIP Module	7 Leads	5 V	Through Hole	2	Isolated Module	36 V	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	1.5 kV	Remote On/Off SCP UVLO	-5 V
Cincon Electronics Co. LTD EC2SA05N	86 %	CE	ITE (Commercial)		2 W	85 °C	-40 °C		5.5 V	6-SIP Module 5 Leads		15 V	Through Hole	2	Isolated Module	4.5 V	19.6 mm	0.28 in	7.2 mm	0.77 in	0.4 "	10.2 mm	1000 V	SCP	-15 V		67 mA	67 mA
Cincon Electronics Co. LTD EC2SA23NH	88 %	CE	ITE (Commercial)	134 mA	2 W	105 C	-40 °C		26.4 V	7-SIP Module 4 Leads		15 V	Through Hole	1	Isolated Module	21.6 V	19.6 mm	0.28 in	7.2 mm	0.77 in	0.4 "	10.2 mm	3000 V
Cincon Electronics Co. LTD EC2SA-12S05N	79 %	CE	ITE (Commercial)	400 mA	2 W	85 °C	-40 °C	60950-1	18 V	8-SIP Module	7 Leads	5 V	Through Hole	1	Isolated Module	9 V	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	1.5 kV	Remote On/Off SCP UVLO
Cincon Electronics Co. LTD EC2SA04NH	85 %	CE	ITE (Commercial)		2 W	105 C	-40 °C		5.5 V	7-SIP Module 5 Leads		12 V	Through Hole	2	Isolated Module	4.5 V	19.6 mm	0.28 in	7.2 mm	0.77 in	0.4 "	10.2 mm	3000 V		-12 V	83 mA	83 mA
Cincon Electronics Co. LTD EC2SA26NH	83 %	CE	ITE (Commercial)		2 W	105 C	-40 °C		26.4 V	7-SIP Module 5 Leads		5 V	Through Hole	2	Isolated Module	21.6 V	19.6 mm	0.28 in	7.2 mm	0.77 in	0.4 "	10.2 mm	3000 V		-5 V
Cincon Electronics Co. LTD EC2SA-05D05N	77 %	CE	ITE (Commercial)		2 W	85 °C	-40 °C	60950-1	9 V	8-SIP Module	7 Leads	5 V	Through Hole	2	Isolated Module	4.5 V	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	1.5 kV	Remote On/Off SCP UVLO	-5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.40

Description

General part information

EC2SAN Series

Isolated Module DC DC Converter 2 Output 12V -12V 83mA, 83mA 18V - 36V Input
