Connectors, Interconnects

117-47-642-41-005000

Active

Mill-Max Manufacturing Corp.

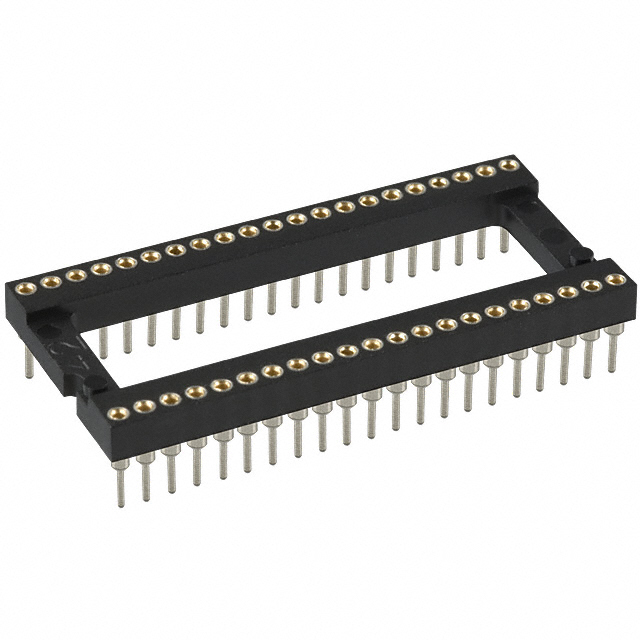

CONN IC DIP SOCKET 42POS GOLD

Connectors, Interconnects

117-47-642-41-005000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 42POS GOLD

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	117-47-642-41-005000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	200 µin
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating	3 A
Features	Open Frame
Grid Columns	21
Grid Rows	2
Housing Material	Polycyclohexylenedimethylene Terephthalate, PCT, Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	42
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.07 in
Pitch - Post	0.07 in
Row Spacing	0.6 in
Termination	Solder
Termination Post Length	0.125 in
Type	DIP, 0.6" (15.24mm) Row Spacing

117-47 Series

Part	Housing Material	Contact Finish Thickness - Post	Pitch - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Pitch - Post	Contact Finish - Mating	Contact Material - Mating	Contact Finish Thickness - Mating	Row Spacing	Type	Number of Positions or Pins (Grid)	Grid Columns	Grid Rows	Mounting Type	Termination	Contact Finish - Post	Contact Material - Post	Features	Material Flammability Rating	Termination Post Length	Current Rating	Contact Resistance
Mill-Max Manufacturing Corp. 117-47-648-41-005000	PCT Polycyclohexylenedimethylene Terephthalate Polyester	200 µin	0.07 in	125 °C	-55 °C	0.07 in	Gold	Beryllium Copper	Flash	0.6 in	0.6" (15.24mm) Row Spacing DIP	48	24	2	Through Hole	Solder	Tin	Brass Alloy	Open Frame	UL94 V-0	0.125 in	3 A	10 mOhm
Mill-Max Manufacturing Corp. 117-47-642-41-005000	PCT Polycyclohexylenedimethylene Terephthalate Polyester	200 µin	0.07 in	125 °C	-55 °C	0.07 in	Gold	Beryllium Copper	Flash	0.6 in	0.6" (15.24mm) Row Spacing DIP	42	21	2	Through Hole	Solder	Tin	Brass Alloy	Open Frame		0.125 in	3 A
Mill-Max Manufacturing Corp. 117-47-640-41-005000	PCT Polycyclohexylenedimethylene Terephthalate Polyester	200 µin	0.07 in	125 °C	-55 °C	0.07 in	Gold	Beryllium Copper	Flash	0.6 in	0.6" (15.24mm) Row Spacing DIP	40	20	2	Through Hole	Solder	Tin	Brass Alloy	Open Frame	UL94 V-0	0.125 in	3 A	10 mOhm
Mill-Max Manufacturing Corp. 117-47-664-41-005000	PCT Polycyclohexylenedimethylene Terephthalate Polyester	200 µin	0.07 in	125 °C	-55 °C	0.07 in	Gold	Beryllium Copper	Flash	0.6 in	0.6" (15.24mm) Row Spacing DIP	64	32	2	Through Hole	Solder	Tin	Brass Alloy	Open Frame	UL94 V-0	0.125 in	3 A	10 mOhm
Mill-Max Manufacturing Corp. 117-47-428-41-005000	PCT Polycyclohexylenedimethylene Terephthalate Polyester	200 µin	0.07 in	125 °C	-55 °C	0.07 in	Gold	Beryllium Copper	Flash	0.4 in	0.4" (10.16mm) Row Spacing DIP	28	14	2	Through Hole	Solder	Tin	Brass Alloy	Open Frame	UL94 V-0	0.125 in	3 A	10 mOhm
Mill-Max Manufacturing Corp. 117-47-652-41-005000	PCT Polycyclohexylenedimethylene Terephthalate Polyester	200 µin	0.07 in	125 °C	-55 °C	0.07 in	Gold	Beryllium Copper	Flash	0.6 in	0.6" (15.24mm) Row Spacing DIP	52	26	2	Through Hole	Solder	Tin	Brass Alloy	Open Frame	UL94 V-0	0.125 in	3 A	10 mOhm
Mill-Max Manufacturing Corp. 117-47-764-41-005000	PCT Polycyclohexylenedimethylene Terephthalate Polyester	200 µin	0.07 in	125 °C	-55 °C	0.07 in	Gold	Beryllium Copper	Flash	0.75 in	0.75" (19.05mm) Row Spacing DIP	64	32	2	Through Hole	Solder	Tin	Brass Alloy	Open Frame		0.125 in	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Tube	1	$ 5.92	1w
		13	$ 4.94
		26	$ 4.71
		52	$ 4.48
		104	$ 4.27
		260	$ 4.00
		507	$ 3.82
		1001	$ 3.64
		2509	$ 3.41

CAD

3D models and CAD resources for this part

Description

General part information

117-47 Series

42 (2 x 21) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole

Documents

Technical documentation and resources

117-47-642-41-005000 | Datasheet
