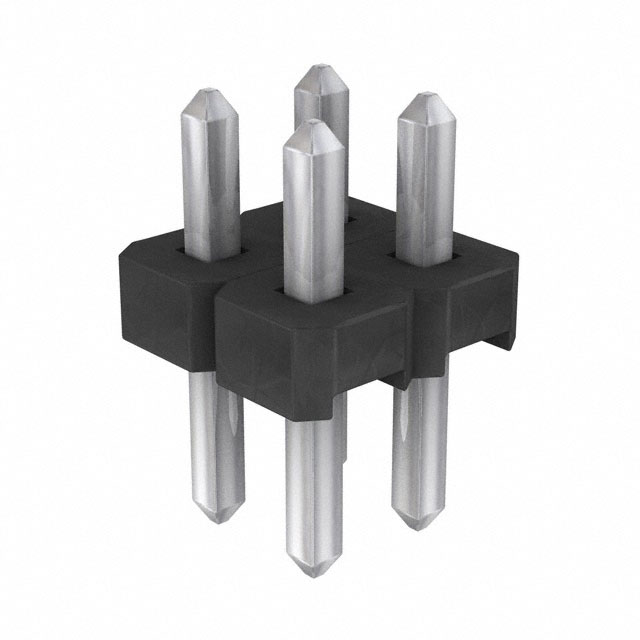

TLW-102-06-T-D

Active

Samtec Inc.

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TLW Datasheet

TLW-102-06-T-D

Active

Samtec Inc.

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet TLW Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLW-102-06-T-D

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.135 in
Contact Length - Post [x]	3.43 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.06 in
Insulation Height [z]	1.52 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	7.62 mm
Overall Contact Length	0.3 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TLW-102 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Shrouding	Number of Positions	Contact Finish - Mating	Number of Rows	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Termination	Connector Type	Current Rating (Amps)	Insulation Material	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Style	Contact Shape	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Contact Length - Mating	Contact Material	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Number of Positions Loaded [custom]
Samtec Inc. TLW-102-01-L-S-RA	-55 °C	125 °C	Push-Pull	Unshrouded	2	Gold	1	0.098 in	2.5 mm	All	Solder	Header	5.2 A	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	0.12 in	3.05 mm	Board to Board Cable	Square	Black	0.1 in	2.54 mm	0.23 in	5.84 mm	Phosphor Bronze	Male Pin
Samtec Inc. TLW-102-05-F-S	-55 °C	105 ░C	Push-Pull	Unshrouded	2	Gold	1	0.06 in	1.52 mm	All	Solder	Header	5.2 A	Liquid Crystal Polymer (LCP)	Through Hole			Board to Board Cable	Square	Black	0.1 in	2.54 mm			Phosphor Bronze	Male Pin	3 µin	0.076 µm	Tin	4.32 mm	0.17 in	8.51 mm	0.335 in
Samtec Inc. TLW-102-06-L-D	-55 °C	125 °C	Push-Pull	Unshrouded	4	Gold	2	0.06 in	1.52 mm	All	Solder	Header	5.2 A	Liquid Crystal Polymer (LCP)	Through Hole	0.135 in	3.43 mm	Board to Board Cable	Square	Black	0.1 in	2.54 mm			Phosphor Bronze	Male Pin						7.62 mm	0.3 in	2.54 mm	0.1 in
Samtec Inc. TLW-102-06-T-D	-55 °C	105 ░C	Push-Pull	Unshrouded	4		2	0.06 in	1.52 mm	All	Solder	Header	5.2 A	Liquid Crystal Polymer (LCP)	Through Hole	0.135 in	3.43 mm	Board to Board Cable	Square	Black	0.1 in	2.54 mm			Phosphor Bronze	Male Pin			Tin			7.62 mm	0.3 in	2.54 mm	0.1 in
Samtec Inc. TLW-102-06-S-S	-55 °C	125 °C	Push-Pull	Unshrouded	2	Gold	1	0.06 in	1.52 mm	All	Solder	Header	5.2 A	Liquid Crystal Polymer (LCP)	Through Hole	0.135 in	3.43 mm	Board to Board Cable	Square	Black	0.1 in	2.54 mm			Phosphor Bronze	Male Pin						7.62 mm	0.3 in
Samtec Inc. TLW-102-06-G-S-01	-55 °C	125 °C	Push-Pull	Unshrouded	2	Gold	1	0.06 in	1.52 mm		Solder	Header	5.2 A	Liquid Crystal Polymer (LCP)	Through Hole	0.135 in	3.43 mm	Board to Board Cable	Square	Black	0.1 in	2.54 mm			Phosphor Bronze	Male Pin	10 çin	0.25 çm	Gold			7.62 mm	0.3 in			Flash	1
Samtec Inc. TLW-102-05-S-D	-55 °C	125 °C	Push-Pull	Unshrouded	4	Gold	2	0.06 in	1.52 mm	All	Solder	Header	5.2 A	Liquid Crystal Polymer (LCP)	Through Hole			Board to Board Cable	Square	Black	0.1 in	2.54 mm			Phosphor Bronze	Male Pin				4.32 mm	0.17 in	8.51 mm	0.335 in	2.54 mm	0.1 in
Samtec Inc. TLW-102-06-TM-S
Samtec Inc. TLW-102-06-S-D	-55 °C	125 °C	Push-Pull	Unshrouded	4	Gold	2	0.06 in	1.52 mm	All	Solder	Header	5.2 A	Liquid Crystal Polymer (LCP)	Through Hole	0.135 in	3.43 mm	Board to Board Cable	Square	Black	0.1 in	2.54 mm			Phosphor Bronze	Male Pin						7.62 mm	0.3 in	2.54 mm	0.1 in
Samtec Inc. TLW-102-01-F-S-RA	-55 °C	125 °C	Push-Pull	Unshrouded	2	Gold	1	0.098 in	2.5 mm	All	Solder	Header	5.2 A	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	0.12 in	3.05 mm	Board to Board Cable	Square	Black	0.1 in	2.54 mm	0.23 in	5.84 mm	Phosphor Bronze	Male Pin	3 µin	0.076 µm	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.67
		10	$ 0.58
		100	$ 0.48
		500	$ 0.42
		1000	$ 0.34
		5000	$ 0.30
		10000	$ 0.28

Description

General part information

TLW-102 Series

Connector Header Through Hole 4 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

TLW Datasheet

Datasheet
