MNI-5-3
ActiveEssentra Access Solutions

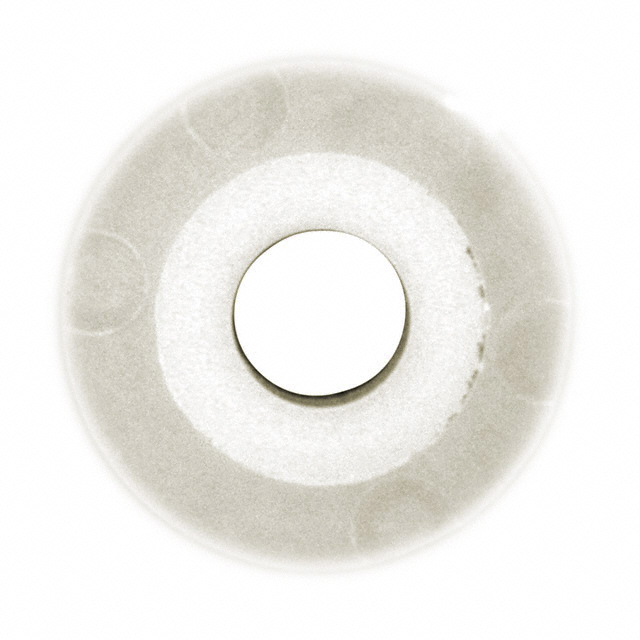

WASHER SHOULDER #5 NYLON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MNI-5-3
ActiveEssentra Access Solutions
WASHER SHOULDER #5 NYLON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MNI-5-3 |
|---|---|
| Diameter - Inside [diameter] | 0.128 in |
| Diameter - Inside [diameter] | 3.25 mm |
| Diameter - Outside [diameter] | 9.4 mm |
| Diameter - Outside [diameter] | 0.37 in |
| Diameter - Shoulder [diameter] | 5.99 mm |
| Diameter - Shoulder [diameter] | 0.236 in |
| Length - Below Head | 0.051 in |
| Length - Below Head | 1.3 mm |
| Material | Nylon |
| Thickness - Overall | 0.098 in |
| Thickness - Overall | 2.5 mm |
| Thread/Screw/Hole Size | #5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.35 | |
| 5 | $ 0.29 | |||
| 10 | $ 0.27 | |||
| 25 | $ 0.24 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
Description
General part information
MNI-5 Series
#5 Shoulder Washer 0.098" (2.50mm) Thick Nylon
