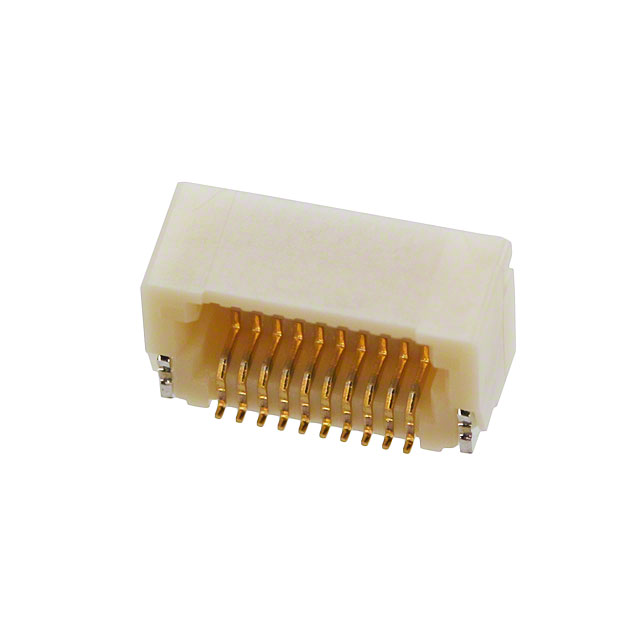

20PS-JMCS-G-1B-TF(N)(LF)(SN)
ObsoleteJST Sales America Inc.
CONN PLUG 20POS R/A SMD GOLD
20PS-JMCS-G-1B-TF(N)(LF)(SN)
ObsoleteJST Sales America Inc.
CONN PLUG 20POS R/A SMD GOLD
Description
General part information
20PS-JMCS Series
20 Position Connector Plug, Outer Shroud Contacts Surface Mount, Right Angle Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | 20PS-JMCS-G-1B-TF(N)(LF)(SN) |
|---|---|
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Features | Board Guide, Solder Retention |
| Height Above Board | 0.17 in |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch | 0.02 in |
