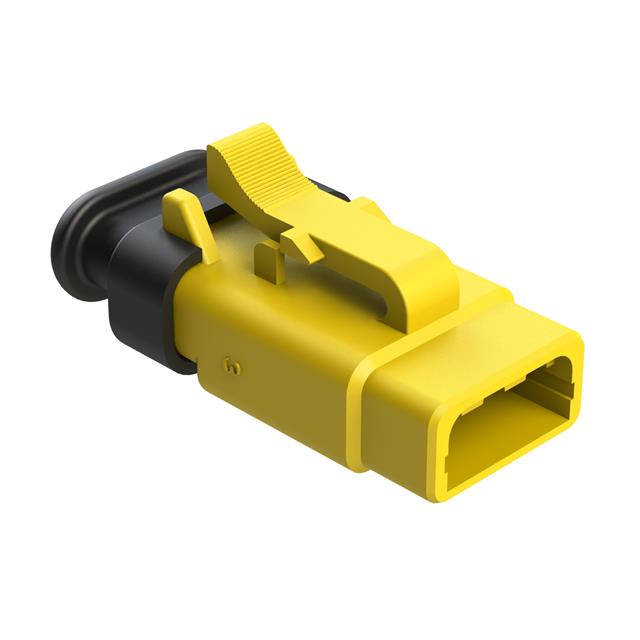

ATM06-3S-SR01YL

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 3POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A Series Family +1

ATM06-3S-SR01YL

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 3POS

Deep-Dive with AI

DocumentsDatasheet A Series Family +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATM06-3S-SR01YL

Color	Yellow
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Cap (Cover), Sealed, Strain Relief, IP67
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

ATM06 Series

Part	Color	Number of Rows	Insulation Material	Connector Type	Contact Type	Fastening Type	Contact Termination	Features	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Accessory Type	For Use With/Related Products	Note
Amphenol Sine Systems Corp ATM06-2S-SR01YL	Yellow	1	Thermoplastic	Plug	Female Socket	Latch Lock	Crimp	Cap (Cover) IP67 Sealed Strain Relief	2	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp ATM06-12SD-CAP								IP68	12				Cap (Cover) Protective	ATM Series
Amphenol Sine Systems Corp ATM06-4S-SR01BK	Black	2	Thermoplastic	Plug	Female Socket	Latch Lock	Crimp	Cap (Cover) IP67 Sealed Strain Relief	4	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp ATM06-2S-SR01BL	Blue	1	Thermoplastic	Plug	Female Socket	Latch Lock	Crimp	Cap (Cover) IP67 Sealed Strain Relief	2	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp ATM06-4S	Gray	2	Thermoplastic	Plug	Female Socket	Latch Lock	Crimp	Sealed	4	-55 °C	125 °C	Free Hanging (In-Line)			Contacts Not Included
Amphenol Sine Systems Corp ATM06-4S-SR01YL	Yellow	2	Thermoplastic	Plug	Female Socket	Latch Lock	Crimp	Cap (Cover) IP67 Sealed Strain Relief	4	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp ATM06-3S-SR01YL	Yellow	1	Thermoplastic	Plug	Female Socket	Latch Lock	Crimp	Cap (Cover) IP67 Sealed Strain Relief		-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp ATM06-6S-SR01GN	Green	3	Thermoplastic	Plug	Female Socket	Latch Lock	Crimp	Cap (Cover) IP67 Sealed Strain Relief	6	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp ATM06-6S-SR01OR		3	Thermoplastic	Plug	Female Socket	Latch Lock	Crimp	Cap (Cover) IP67 Sealed Strain Relief	6	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp ATM06-4S-SR01GY	Gray	2	Thermoplastic	Plug	Female Socket	Latch Lock	Crimp	Cap (Cover) Sealed Strain Relief	4	-55 °C	125 °C	Free Hanging (In-Line)			Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.63
		10	$ 1.42
		25	$ 1.36
		50	$ 1.33
		100	$ 1.27
		250	$ 1.15
		500	$ 1.06

Description

General part information

ATM06 Series

3 Rectangular Connectors - Housings Plug Yellow

Documents

Technical documentation and resources

Datasheet

A Series Family

Datasheet

ATM Series SR01

Datasheet
