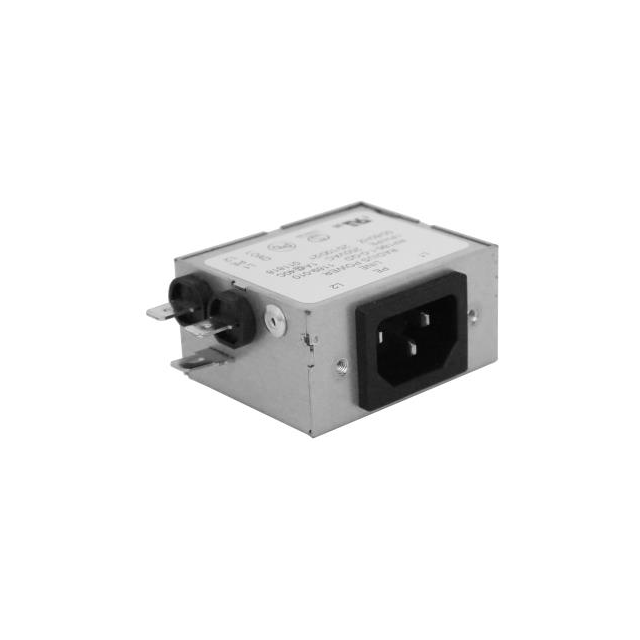

RP186-16-10-QD

Active

Astrodyne TDI

LINE FILTER 250VAC 16A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RP186-16-10-QD

Active

Astrodyne TDI

LINE FILTER 250VAC 16A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP186-16-10-QD

Applications	General Purpose
Approval Agency	CE, CSA, ENEC, cURus
Configuration	Single Stage
Current	16 A
Filter Type	Single Phase
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Quick Connect, IEC 320-C14
Voltage - Rated AC	250 V

RP186 Series

...

Part	Mounting Type	Approval Agency	Applications	Operating Temperature [custom]	Voltage - Rated AC	Current	Configuration	Filter Type	Termination Style	Frequency - Operating [Max]	Frequency - Operating [Min]
Astrodyne TDI RP186-1-.47-W	Chassis Mount	CE CSA cURus ENEC	General Purpose	-25 °C 100 °C	250 V	1 A	Single Stage	Single Phase	IEC 320-C14 Wire Leads	60 Hz	50 Hz
Astrodyne TDI RP186-12-1-W	Chassis Mount	CE CSA cURus ENEC	General Purpose	-25 °C 100 °C	250 V	12 A	Single Stage	Single Phase	IEC 320-C14 Wire Leads	60 Hz	50 Hz
Astrodyne TDI RP186-16-22-QD	Chassis Mount	CE CSA cURus ENEC	General Purpose	-25 °C 100 °C	250 V	16 A	Single Stage	Single Phase	IEC 320-C14 Quick Connect	60 Hz	50 Hz
Astrodyne TDI RP186-1-47-QD	Chassis Mount	CE CSA cURus ENEC	General Purpose	-25 °C 100 °C	250 V	1 A	Single Stage	Single Phase	IEC 320-C14 Quick Connect	60 Hz	50 Hz
Astrodyne TDI RP186-1-0-W	Chassis Mount	CE CSA cURus ENEC	General Purpose	-25 °C 100 °C	250 V	1 A	Single Stage	Single Phase	IEC 320-C14 Wire Leads	60 Hz	50 Hz
Astrodyne TDI RP186-16-47-QD	Chassis Mount	CE CSA cURus ENEC	General Purpose	-25 °C 100 °C	250 V	16 A	Single Stage	Single Phase	IEC 320-C14 Quick Connect	60 Hz	50 Hz
Astrodyne TDI RP186-1-4.7-QD	Chassis Mount	CE CSA cURus ENEC	General Purpose	-25 °C 100 °C	250 V	1 A	Single Stage	Single Phase	IEC 320-C14 Quick Connect	60 Hz	50 Hz
Astrodyne TDI RP186-12-2.2-QD	Chassis Mount	CE CSA cURus ENEC	General Purpose	-25 °C 100 °C	250 V	12 A	Single Stage	Single Phase	IEC 320-C14 Quick Connect	60 Hz	50 Hz
Astrodyne TDI RP186-16-10-QD	Chassis Mount	CE CSA cURus ENEC	General Purpose	-25 °C 100 °C	250 V	16 A	Single Stage	Single Phase	IEC 320-C14 Quick Connect	60 Hz	50 Hz
Astrodyne TDI RP186-10-47-W	Chassis Mount	CE CSA cURus ENEC	General Purpose	-25 °C 100 °C	250 V	10 A	Single Stage	Single Phase	IEC 320-C14 Wire Leads	60 Hz	50 Hz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 20.02

Description

General part information

RP186 Series

Single Phase EMC/EMI Line Filter 16 A 250V 50/60Hz Single Stage IEC 320-C14, Quick Connect
