202-0035-01

Active

Schmartboard, Inc.

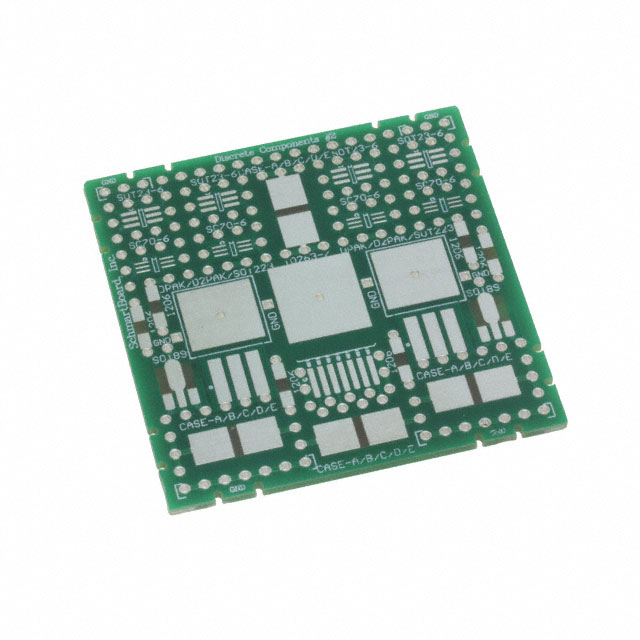

EZ DISCRETE #2 SUPPORTS SOT23-3,

Search across all available documentation for this part.

Active

Schmartboard, Inc.

EZ DISCRETE #2 SUPPORTS SOT23-3,

Technical Specifications

Parameters and characteristics for this part

Specification	202-0035-01

Package Accepted	B, 0805, SOT23-3, TO263-7, D2PAK, SOT223, SOT89, D, 1206, 5, DPAK, C, CASE-A, 6, SC70-5, E
Proto Board Type	SMD to Plated Through Hole Board
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm

EZ DISCRETE #2 SUPPORTS SOT23-3,

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Proto Board Type	Package Accepted
Schmartboard, Inc. 202-0035-01	2 in	50.8 mm	50.8 mm	2 in	SMD to Plated Through Hole Board	0805, 1206, 5, 6, B, C, CASE-A, D, D2PAK, DPAK, E, SC70-5, SOT223, SOT23-3, SOT89, TO263-7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.00

General part information

EZ DISCRETE #2 SUPPORTS SOT23-3,

Technical documentation and resources
