FFS.00.250.CTCE52
ActiveLEMO

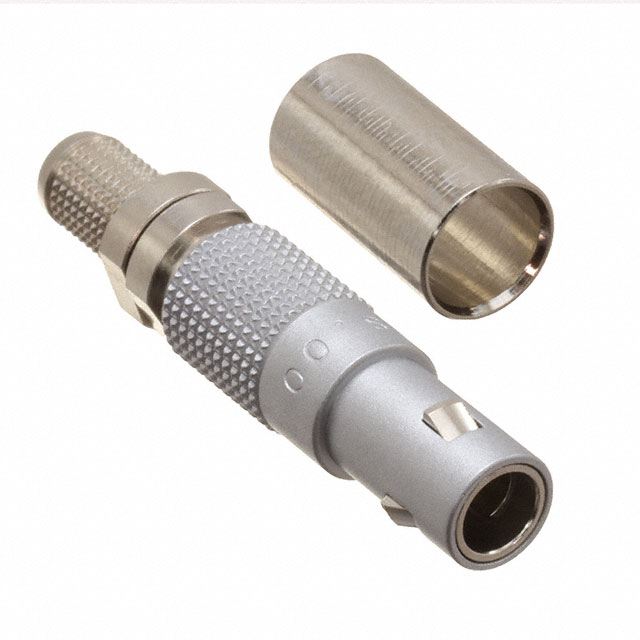

CONN NIMCAMA PLG STR 50OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
FFS.00.250.CTCE52
ActiveLEMO
CONN NIMCAMA PLG STR 50OHM CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FFS.00.250.CTCE52 | FFS.00 Series |
|---|---|---|
| - | - | |
| Accessory Type | - | Crimp Ferrule |
| Backshell Material, Plating | - | Brass, Chrome |
| Body Finish | Chrome | Nickel, Chrome |
| Body Material | Brass | Brass |
| Cable Group | RG-58 | 316, 188A, RG-174, RG-142B, RG-178B, 196A, RG-58, 187, RG-179 |
| Center Contact Material | Brass | Brass |
| Center Contact Plating | Gold | Gold |
| Color | - | Silver |
| Connector Style | NIM-CAMAC CD/N 549 | NIM-CAMAC CD/N 549, Coaxial |
| Connector Type | Male Pin, Plug | Male Pin, Plug, Male Pins |
| Contact Finish - Mating | - | Gold |
| Contact Finish Thickness - Mating | - | 1 µm |
| Contact Finish Thickness - Mating | - | 39.4 µin |
| Contact Material | - | Brass |
| Contact Termination | Crimp | Crimp |
| Current Rating (Amps) | - | 8 A |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull | Push-Pull |
| Features | - | Backshell |
| For Use With/Related Products | - | 00 Series Connector |
| Housing Color | Silver | Silver |
| Impedance | 50 Ohms | 50 Ohms |
| Ingress Protection | IP50 | IP50 |
| Insert Material | - | Polytetrafluoroethylene (PTFE) |
| Mating Cycles | 5000 | 5000 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Ports | 1 | 1 |
| Number of Positions | - | 1 |
| Operating Temperature [Max] | 260 ░C | 250 - 260 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | - | S |
| Primary Material | - | Metal |
| Shell Finish | - | Chrome |
| Shell Material | - | Brass |
| Shell Size - Insert | - | 113 |
| Shield Termination | Crimp | Crimp |
| Shielding | - | Shielded |
| Termination | - | Crimp |
| Voltage Rating | 700 VDC | 700 VDC |
FFS.00 Series
CRIMP FERRULE FOR FFS.00.
| Part | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Impedance | Center Contact Material | Cable Group | Connector Style | Mounting Type | Shield Termination | Center Contact Plating | Ingress Protection | Contact Termination | Connector Type | Number of Ports | Body Finish | Fastening Type | Voltage Rating | Dielectric Material | Mating Cycles | Housing Color | Backshell Material, Plating | Insert Material | Color | Shell Material | Features | Shielding | Shell Finish | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Current Rating (Amps) | Orientation | Contact Finish - Mating | Primary Material | Shell Size - Insert | Number of Positions | Accessory Type | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO FFS.00.161.MN | |||||||||||||||||||||||||||||||||||||||
Brass | -55 °C | 260 ░C | 50 Ohms | Brass | 188A, 316, RG-174 | NIM-CAMAC CD/N 549 | Free Hanging (In-Line) | Crimp | Gold | IP50 | Crimp | Male Pin, Plug | 1 | Nickel | Push-Pull | 700 VDC | Polytetrafluoroethylene (PTFE) | 5000 | Silver | ||||||||||||||||||||
Brass | -55 °C | 260 ░C | 50 Ohms | Brass | NIM-CAMAC CD/N 549 | Free Hanging (In-Line) | Crimp | Gold | IP50 | Crimp | Male Pin, Plug | Nickel | Push-Pull | 700 VDC | Polytetrafluoroethylene (PTFE) | 5000 | Silver | ||||||||||||||||||||||
-55 °C | 250 °C | Free Hanging (In-Line) | IP50 | Male Pins, Plug | Push-Pull | Brass, Chrome | Polytetrafluoroethylene (PTFE) | Silver | Brass | Backshell | Shielded | Chrome | Brass | 1 µm | 39.4 µin | Crimp | 8 A | S | Gold | Metal | 113 | 1 | |||||||||||||||||
Brass | 50 Ohms | Coaxial | Free Hanging (In-Line) | Crimp | Gold | IP50 | Crimp | Male Pin, Plug | 1 | Chrome | Push-Pull | Polytetrafluoroethylene (PTFE) | 5000 | Silver | |||||||||||||||||||||||||
Brass | -55 °C | 260 ░C | 50 Ohms | Brass | RG-142B | NIM-CAMAC CD/N 549 | Free Hanging (In-Line) | Crimp | Gold | IP50 | Crimp | Male Pin, Plug | Chrome | Push-Pull | 700 VDC | Polytetrafluoroethylene (PTFE) | 5000 | Silver | |||||||||||||||||||||
LEMO FFS.00.160.DN | Crimp Ferrule | 00 Series Connector | |||||||||||||||||||||||||||||||||||||
LEMO FFS.00.162.DN | Crimp Ferrule | 00 Series Connector | |||||||||||||||||||||||||||||||||||||
Brass | -55 °C | 260 ░C | 50 Ohms | Brass | 196A, RG-178B | NIM-CAMAC CD/N 549 | Free Hanging (In-Line) | Crimp | Gold | IP50 | Crimp | Male Pin, Plug | 1 | Chrome | Push-Pull | 700 VDC | Polytetrafluoroethylene (PTFE) | 5000 | Silver | ||||||||||||||||||||
Brass | -55 °C | 260 ░C | 50 Ohms | Brass | RG-58 | NIM-CAMAC CD/N 549 | Free Hanging (In-Line) | Crimp | Gold | IP50 | Crimp | Male Pin, Plug | 1 | Chrome | Push-Pull | 700 VDC | Polytetrafluoroethylene (PTFE) | 5000 | Silver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.91 | |
| 10 | $ 21.53 | |||
| 25 | $ 19.50 | |||
| 50 | $ 18.13 | |||
| 100 | $ 16.89 | |||
| 250 | $ 15.43 | |||
| 500 | $ 14.44 | |||
Description
General part information
FFS.00 Series
NIM-CAMAC CD/N 549 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
