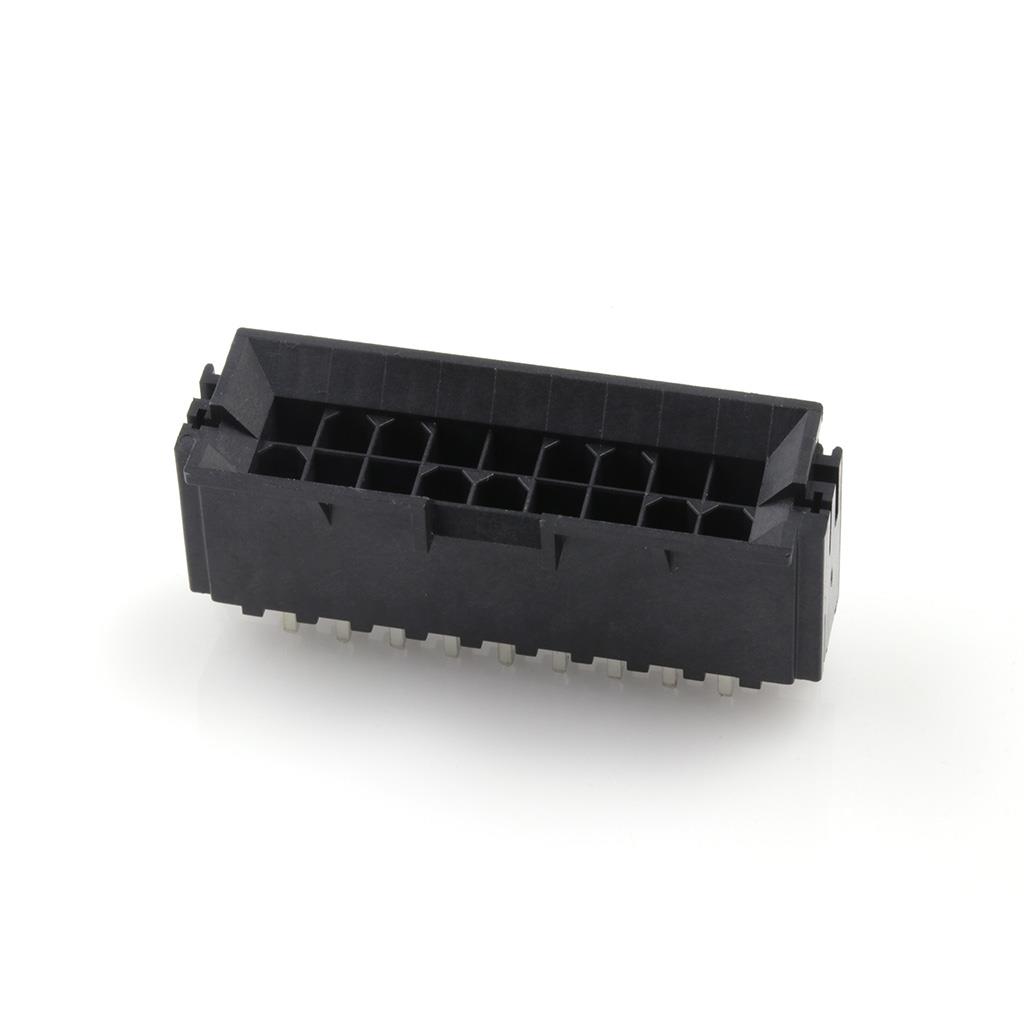

Specification	0440680052

Applications	Medical, Industrial, Telecommunications, General Purpose
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	100 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Post	0.177 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Board Lock, Blind Mating
Insulation Color	Black
Insulation Height	0.587 in
Insulation Material	Nylon 4/6, Polyamide (PA46)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.165 in
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Solder

044068 Series

Part	Contact Type	Features	Insulation Material	Contact Finish Thickness - Mating	Fastening Type	Number of Positions	Contact Shape	Style	Material Flammability Rating	Number of Rows	Insulation Height	Number of Positions Loaded	Contact Material	Contact Length - Post	Insulation Color	Contact Finish - Mating	Connector Type	Shrouding	Row Spacing - Mating	Contact Finish - Post	Mounting Type	Pitch - Mating	Termination	Applications	Contact Finish Thickness - Post
Molex 0440680030	Male Pin	Blind Mating	Nylon 4/6 Polyamide (PA46)	100 µin	Latch Holder	18	Square	Board Board or Cable	UL94 V-0	2	0.587 in	All	Brass	0.13 in	Black	Tin	Header	Shrouded - 4 Wall	0.165 in	Tin	Through Hole	0.165 in	Solder	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0440680034	Male Pin	Blind Mating	Nylon 4/6 Polyamide (PA46)	30 µin	Latch Holder	4	Square	Board Board or Cable	UL94 V-0	2	0.587 in	All	Brass	0.13 in	Black	Gold	Header	Shrouded - 4 Wall	0.165 in	Tin	Through Hole	0.165 in	Solder	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0440680278	Male Pin	Blind Mating Board Lock	Nylon 4/6 Polyamide (PA46)	30 µin	Latch Holder	6	Square	Board Board or Cable	UL94 V-0	2	0.587 in	All	Brass	0.335 in	Black	Gold	Header	Shrouded - 4 Wall	0.165 in	Tin	Through Hole	0.165 in	Solder	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0440680254	Male Pin	Blind Mating	Nylon 4/6 Polyamide (PA46)	100 µin	Latch Holder	24 pos	Square	Board Board or Cable	UL94 V-0	2	0.587 in	All	Brass	0.335 in	Black	Tin	Header	Shrouded - 4 Wall	0.165 in	Tin	Through Hole	0.165 in	Solder	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0440680052	Male Pin	Blind Mating Board Lock	Nylon 4/6 Polyamide (PA46)	100 µin	Latch Holder	18	Square	Board Board or Cable	UL94 V-0	2	0.587 in	All	Brass	0.177 in	Black	Tin	Header	Shrouded - 4 Wall	0.165 in	Tin	Through Hole	0.165 in	Solder	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0440680012	Male Pin	Blind Mating Board Lock	Nylon 4/6 Polyamide (PA46)	30 µin	Latch Holder	4	Square	Board Board or Cable	UL94 V-0	2	0.587 in	All	Brass	0.193 in	Black	Gold	Header	Shrouded - 4 Wall	0.165 in	Tin	Through Hole	0.165 in	Solder	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0440680258	Male Pin	Blind Mating	Nylon 4/6 Polyamide (PA46)	30 µin	Latch Holder	10	Square	Board Board or Cable	UL94 V-0	2	0.587 in	All	Brass	0.335 in	Black	Gold	Header	Shrouded - 4 Wall	0.165 in	Tin	Through Hole	0.165 in	Solder	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0440680107	Male Pin	Blind Mating Board Lock	Nylon 4/6 Polyamide (PA46)	30 µin	Latch Holder	18	Square	Board Board or Cable	UL94 V-0	2	0.587 in	All	Brass	0.193 in	Black	Gold	Header	Shrouded - 4 Wall	0.165 in	Tin	Through Hole	0.165 in	Solder	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0440680048	Male Pin	Blind Mating Board Lock	Nylon 4/6 Polyamide (PA46)	100 µin	Latch Holder	10	Square	Board Board or Cable	UL94 V-0	2	0.587 in	All	Brass	0.177 in	Black	Tin	Header	Shrouded - 4 Wall	0.165 in	Tin	Through Hole	0.165 in	Solder	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0440680276	Male Pin	Blind Mating Board Lock	Nylon 4/6 Polyamide (PA46)	100 µin	Latch Holder	24 pos	Square	Board Board or Cable	UL94 V-0	2	0.587 in	All	Brass	0.335 in	Black	Tin	Header	Shrouded - 4 Wall	0.165 in	Tin	Through Hole	0.165 in	Solder	General Purpose Industrial Medical Telecommunications	100 Ąin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

0440680052 | Datasheet

Min-Fit Jr Test Summary
