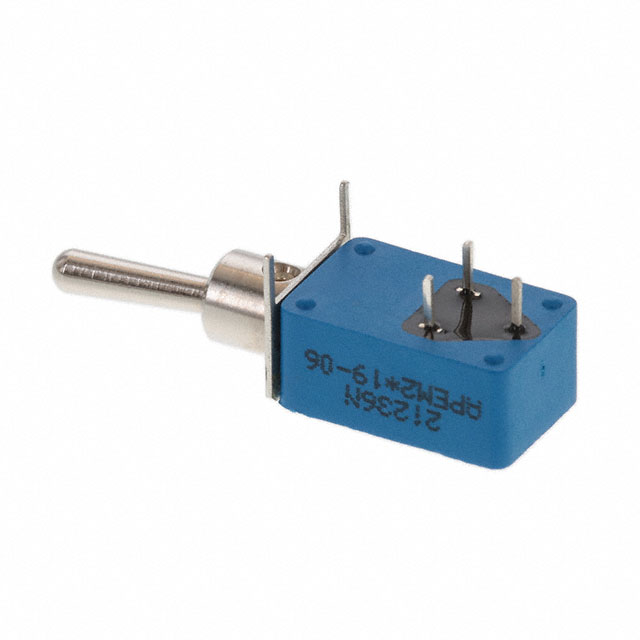

21236NA

Active

APEM

SWITCH TOGGLE SPDT 4A 125V

Search across all available documentation for this part.

Active

APEM

SWITCH TOGGLE SPDT 4A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	21236NA

Actuator Length [x]	11.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	4 A
Electrical Life	20000 Steps
Illumination	Non-Illuminated
Mounting Type	Right Angle, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Voltage Rating - AC	Termination Style	Switch Function	Actuator Material	Actuator Length [x]	Illumination	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Electrical Life	Bushing Thread	Voltage Rating - DC	Mounting Type
APEM 21236NA	SPDT	85 °C	-40 °C	Standard Round	125 V	PC Pin	On-On	Brass Chrome Plated	11.5 mm	Non-Illuminated	4 A	6.5 mm	20000 Steps	Unthreaded	30 V	Panel Mount Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount, Right Angle
