Specification	ESHF-115-01-L-D-SM

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 µin
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.215 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.05 in
Row Spacing - Mating	0.05 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

ESHF-115 Series

Part	Insulation Height	Mounting Type	Features	Shrouding	Contact Type	Row Spacing - Mating	Number of Positions Loaded	Fastening Type	Pitch - Mating	Style	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Contact Finish - Mating	Contact Finish - Post	Insulation Color	Contact Length - Post	Contact Length - Mating	Number of Positions	Insulation Material	Number of Rows	Connector Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Samtec Inc. ESHF-115-01-L-D-RA	0.22 in	Right Angle Through Hole	Keying Slot	Shrouded - 4 Wall	Male Pin	0.05 in	All	Push-Pull	0.05 in	Board Cable/Wire	Solder	125 °C	-55 °C	Phosphor Bronze	Gold	Tin	Black	0.085 in	0.12 in	30	Liquid Crystal Polymer (LCP)	2	Header	Square	10 µin

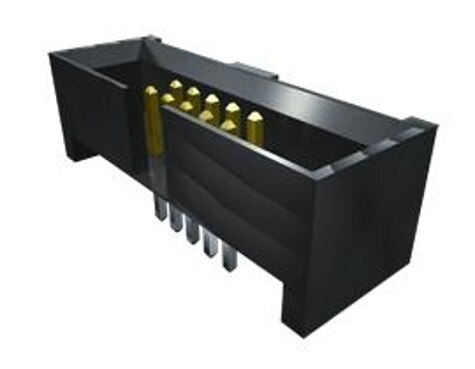

Samtec Inc. ESHF-115-01-L-D-RA-TR	0.22 in	Right Angle Through Hole	Keying Slot	Shrouded - 4 Wall	Male Pin	0.05 in	All	Push-Pull	0.05 in	Board Cable/Wire	Solder	125 °C	-55 °C	Phosphor Bronze	Gold	Tin	Black	0.085 in	0.12 in	30	Liquid Crystal Polymer (LCP)	2	Header	Square	10 µin
Samtec Inc. ESHF-115-01-F-D-TH-LC	0.21 in	Through Hole	Board Lock Keying Slot	Shrouded - 4 Wall	Male Pin	0.05 in	All	Push-Pull	0.05 in	Board Cable/Wire	Solder	125 °C	-55 °C	Phosphor Bronze	Gold		Black	0.075 in	0.12 in	30	Liquid Crystal Polymer (LCP)	2	Header	Square		Flash
Samtec Inc. ESHF-115-01-L-D-SM-K	0.215 in	Surface Mount	Keying Slot Pick and Place	Shrouded - 4 Wall	Male Pin	0.05 in	All	Push-Pull	0.05 in	Board Cable/Wire	Solder	125 °C	-55 °C	Phosphor Bronze	Gold	Tin	Black		0.12 in	30	Liquid Crystal Polymer (LCP)	2	Header	Square	10 µin
Samtec Inc. ESHF-115-01-L-D-SM-K-TR	0.215 in	Surface Mount	Keying Slot Pick and Place	Shrouded - 4 Wall	Male Pin	0.05 in	All	Push-Pull	0.05 in	Board Cable/Wire	Solder	125 °C	-55 °C	Phosphor Bronze	Gold	Tin	Black		0.12 in	30	Liquid Crystal Polymer (LCP)	2	Header	Square	10 µin
Samtec Inc. ESHF-115-01-L-D-SM-LC-K-TR	0.215 in	Surface Mount	Board Lock Keying Slot Pick and Place	Shrouded - 4 Wall	Male Pin	0.05 in	All	Push-Pull	0.05 in	Board Cable/Wire	Solder	125 °C	-55 °C	Phosphor Bronze	Gold	Tin	Black		0.12 in	30	Liquid Crystal Polymer (LCP)	2	Header	Square	10 µin
Samtec Inc. ESHF-115-01-L-D-TH	0.21 in	Through Hole	Keying Slot	Shrouded - 4 Wall	Male Pin	0.05 in	All	Push-Pull	0.05 in	Board Cable/Wire	Solder	125 °C	-55 °C	Phosphor Bronze	Gold	Tin	Black	0.075 in	0.12 in	30	Liquid Crystal Polymer (LCP)	2	Header	Square	10 µin
Samtec Inc. ESHF-115-01-L-D-SM	0.215 in	Surface Mount	Keying Slot	Shrouded - 4 Wall	Male Pin	0.05 in	All	Push-Pull	0.05 in	Board Cable/Wire	Solder	125 °C	-55 °C	Phosphor Bronze	Gold	Tin	Black		0.12 in	30	Liquid Crystal Polymer (LCP)	2	Header	Square	10 µin
