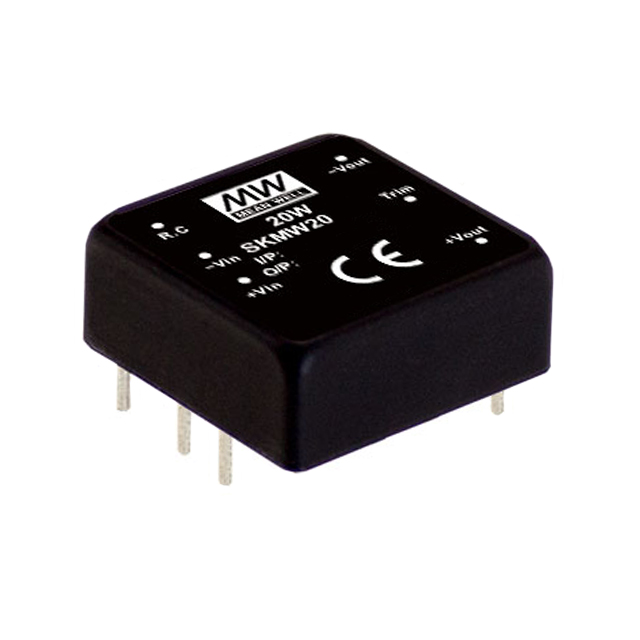

SKMW20G-03
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 3.3V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKMW20G-03
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 3.3V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKMW20G-03 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 4.5 A |
| Efficiency | 87 % |
| Features | OVP, UVLO, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 38.04 | |
| 5 | $ 35.87 | |||
| 10 | $ 34.97 | |||
Description
General part information
SKMW20 Series
Isolated Module DC DC Converter 1 Output 3.3V 4.5A 18V - 75V Input
