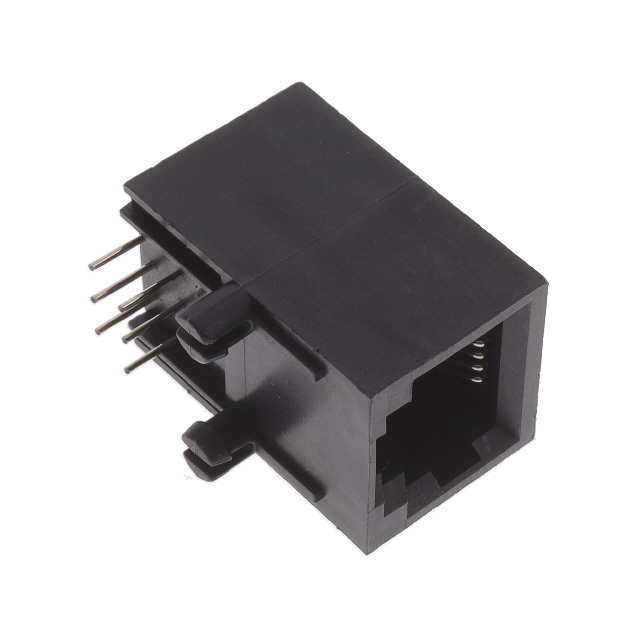

MTJ-66GX1
ActiveAdam Tech
MODULAR JACK 6P6C
Deep-Dive with AI
Search across all available documentation for this part.
MTJ-66GX1
ActiveAdam Tech
MODULAR JACK 6P6C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MTJ-66GX1 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT) |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | 6p6c (RJ11, RJ12, RJ14, RJ25) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Shielding | Unshielded |
| Tab Direction | Down |
| Termination | Solder |
MTJ-66 Series
| Part | Shielding | Contact Finish Thickness | Orientation | LED Color | Number of Rows | Connector Type | Termination | Number of Positions/Contacts | Operating Temperature [Max] | Operating Temperature [Min] | Tab Direction | Housing Material | Mounting Type | Contact Finish | Number of Ports | Contact Material | Features | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | Unshielded | Flash | 90 ° | Does Not Contain LED | 1 | Jack | Solder | 6p6c (RJ11 RJ12 RJ14 RJ25) | 85 °C | -40 °C | Down | Polybutylene Terephthalate (PBT) | Through Hole | Gold | 1 | Phosphor Bronze | ||
Adam Tech | Unshielded | Flash | 90 ° | Does Not Contain LED | 1 | Jack | Solder | 6p6c (RJ11 RJ12 RJ14 RJ25) | 70 °C | 0 °C | Up | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Gold | 1 | Phosphor Bronze | ||
Adam Tech | Unshielded | Flash | 90 ° | Does Not Contain LED | 1 | Jack | Solder | 6p6c (RJ11 RJ12 RJ14 RJ25) | 125 °C | -40 °C | Down | Thermoplastic | Surface Mount | Gold | 1 | Phosphor Bronze | Solder Retention | |
Adam Tech | Unshielded | Flash | 90 ° | Does Not Contain LED | 1 | Jack | Solder | 6p6c (RJ11 RJ12 RJ14 RJ25) | 85 °C | -40 °C | Down | Polybutylene Terephthalate (PBT) | Through Hole | Gold | 1 | Phosphor Bronze | ||
Adam Tech | Unshielded | Flash | Does Not Contain LED | 1 | Jack | Solder | 6p6c (RJ11 RJ12 RJ14 RJ25) | 85 °C | -40 °C | User Selectable | Polybutylene Terephthalate (PBT) | Through Hole | Gold | 1 | Phosphor Bronze | Vertical | ||
Adam Tech | Unshielded | Flash | 90 ° | Does Not Contain LED | 1 | Jack | Solder | 6p6c (RJ11 RJ12 RJ14 RJ25) | 125 °C | -40 °C | Down | Polyamide (PA) Nylon Glass Filled | Surface Mount | Gold | 1 | Phosphor Bronze | Solder Retention | |
Adam Tech | Unshielded | Flash | 90 ° | Does Not Contain LED | 1 | Jack | Solder | 6p6c (RJ11 RJ12 RJ14 RJ25) | 85 °C | -40 °C | Down | Polybutylene Terephthalate (PBT) | Through Hole | Gold | 1 | Phosphor Bronze | ||
Adam Tech | Unshielded | Flash | 90 ° | Does Not Contain LED | 1 | Jack | Solder | 6p6c (RJ11 RJ12 RJ14 RJ25) | 70 °C | -40 °C | Down | Thermoplastic | Surface Mount | Gold | 1 | Phosphor Bronze | ||
Adam Tech | Unshielded | Flash | 90 ° | Does Not Contain LED | 1 | Jack | Solder | 6p6c (RJ11 RJ12 RJ14 RJ25) | 85 °C | -40 °C | Down | Polybutylene Terephthalate (PBT) | Through Hole | Gold | 1 | Phosphor Bronze |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.38 | |
Description
General part information
MTJ-66 Series
Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) 90° Angle (Right) Unshielded
