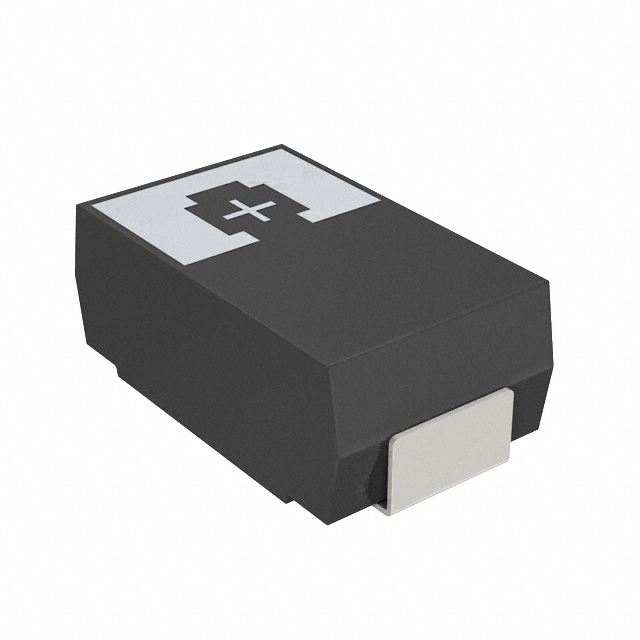

4TAE220M
ActivePanasonic Industrial Automation Sales
TANTALUM CAPACITOR, POLARIZED, TANTALUM (SOLID POLYMER), 4V, 20% +TOL, 20% -TOL, 220UF, SURFACE MOUNT, 2917, CHIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4TAE220M
ActivePanasonic Industrial Automation Sales
TANTALUM CAPACITOR, POLARIZED, TANTALUM (SOLID POLYMER), 4V, 20% +TOL, 20% -TOL, 220UF, SURFACE MOUNT, 2917, CHIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4TAE220M |
|---|---|
| Capacitance | 220 µF |
| ESR (Equivalent Series Resistance) | 25 mOhm |
| Features | General Purpose |
| Height - Seated (Max) [Max] [z] | 2.1 mm |
| Height - Seated (Max) [Max] [z] | 0.083 " |
| Lifetime @ Temp. | 2000 Hrs |
| Manufacturer Size Code | D2E |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1411 |
| Package / Case | 3528 Metric |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.8 mm |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.00 | |
| 10 | $ 1.54 | |||
| 50 | $ 1.41 | |||
| 100 | $ 1.17 | |||
| 500 | $ 0.94 | |||
| 1000 | $ 0.83 | |||
| Digi-Reel® | 1 | $ 2.00 | ||
| 10 | $ 1.54 | |||
| 50 | $ 1.41 | |||
| 100 | $ 1.17 | |||
| 500 | $ 0.94 | |||
| 1000 | $ 0.83 | |||
| Tape & Reel (TR) | 3000 | $ 0.70 | ||
Description
General part information
4TAE Series
220 µF Molded Tantalum Polymer Capacitor 4 V 1411 (3528 Metric) 25mOhm @ 100kHz
