Specification	6600383-3

Color	Black
Connector Style	Multi-Beam
Connector Type	Blades, Male Pins, Header
Contact Finish	Gold
Contact Finish Thickness	30 µin
Current Rating	42 A
Features	Board Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	4
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-20 °C
Pitch	0.1 in
Power Contacts (Typical)	4
Signal Contacts (Typical)	24
Termination	Press-Fit

6600383 Series

Part	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Connector Type	Mounting Type	Number of Positions Loaded	Number of Rows	Contact Finish	Connector Style	Color	Pitch	Features	Termination	Contact Finish Thickness	Power Contacts (Typical)	Signal Contacts (Typical)	Number of Positions	Voltage Rating	Voltage Rating (Type)	Number of Positions Loaded
TE Connectivity AMP Connectors 6600383-4	42 A	-20 °C	105 °C	UL94 V-0	Blades Header Male Pins	Through Hole	All	4	Gold	Multi-Beam	Black	0.1 in	Board Lock	Press-Fit	30 µin	8	32	40
TE Connectivity AMP Connectors 6600383-3	42 A	-20 °C	105 °C	UL94 V-0	Blades Header Male Pins	Through Hole	All	4	Gold	Multi-Beam	Black	0.1 in	Board Lock	Press-Fit	30 µin	4	24	28

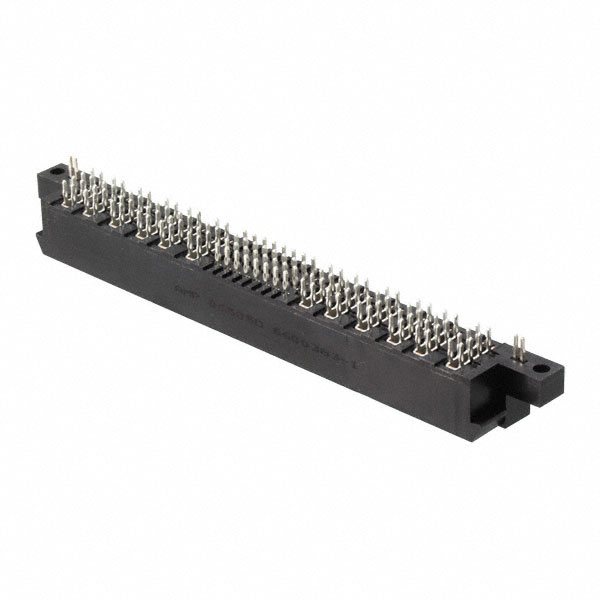

TE Connectivity AMP Connectors 6600383-1		-20 °C	105 °C	UL94 V-0	Blades Header Male Pins	Through Hole	All	4	Gold	Multi-Beam	Black	0.1 in	Board Lock	Press-Fit	30 µin	12	32	44
TE Connectivity AMP Connectors 6600383-7		-20 °C	105 °C	UL94 V-0	Blades Header Male Pins	Through Hole	All	4	Gold	Multi-Beam	Black	0.1 in	Board Lock	Press-Fit	30 µin	8	24	32
TE Connectivity AMP Connectors 6600383-9	42 A	-20 °C	105 °C	UL94 V-0	Blades Header Male Pins	Through Hole	All	4	Gold	Multi-Beam	Black	0.1 in	Board Lock	Press-Fit	30 µin	8	24	32
TE Connectivity AMP Connectors 6600383-6		-20 °C	105 °C	UL94 V-0	Blades Header Male Pins	Through Hole	All	4	Gold	Multi-Beam	Black	0.1 in	Board Lock	Press-Fit	30 µin	6	24	30
TE Connectivity AMP Connectors 1-6600383-0		-20 °C	105 °C	UL94 V-0	Blades Header Male Pins	Through Hole		4	Gold	Multi-Beam	Black	0.1 in	Board Lock	Press-Fit	30 µin			68	60 V	DC	64
TE Connectivity AMP Connectors 6600383-2	42 A	-20 °C	105 °C	UL94 V-0	Blades Header Male Pins	Through Hole	All	4	Gold	Multi-Beam	Black	0.1 in	Board Lock	Press-Fit	30 µin			44
